Metadata

Part No. 55903-1016 55903-3922 55903-5125 55904-6322 55904-8123 55904-6925 55904-7823 55904-8523

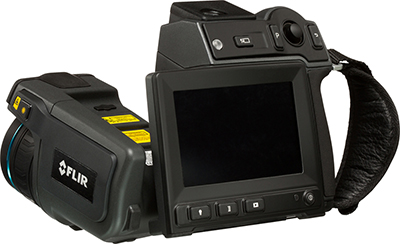

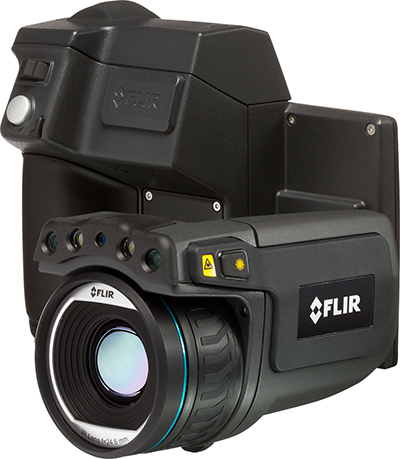

Product name FLIR T600 25° (incl. Wi-Fi and Ext. cal.) FLIR T610 25° (incl. Wi-Fi) FLIR T620 25° (incl. Wi-Fi and Ext. cal.) FLIR T630 25° (incl. Wi-Fi) FLIR T630sc 25° (incl. Wi-Fi) FLIR T640 25° (incl. Wi-Fi and Ext. cal.) FLIR T650sc 25° (incl. Wi-Fi) FLIR T660 25° (incl. Wi-Fi and Ext. cal.)
Revision 35840 28823 35853 28823 28823 35885 35207 35897
Last modified 2016-05-24 10:09 2015-10-01 11:49 2016-05-24 11:22 2015-10-01 11:49 2015-10-01 11:49 2016-05-25 13:39 2016-04-27 09:29 2016-05-25 14:16

Imaging and optical data

IR resolution 480 × 360 pixels 640 × 480 pixels 640 × 480 pixels 640 × 480 pixels 640 × 480 pixels 640 × 480 pixels 640 × 480 pixels 640 × 480 pixels
No Yes Yes Yes Yes Yes Yes Yes
Thermal sensitivity/NETD <40 mK @ +30°C (+86°F) <40 mK @ +30°C (+86°F) <40 mK @ +30°C (+86°F) <40 mK @ +30°C (+86°F) <30 mK @ +30°C (+86°F) <30 mK @ +30°C (+86°F) <20 mK @ +30°C (+86°F) <20 mK @ +30°C (+86°F)
Field of view (FOV) 25° × 19° 25° × 19° 25° × 19° 25° × 19° 25° × 19° 25° × 19° 25° × 19° 25° × 19°
Minimum focus distance 0.25 m (0.82 ft.) 0.25 m (0.82 ft.) 0.25 m (0.82 ft.) 0.25 m (0.82 ft.) 0.25 m (0.82 ft.) 0.25 m (0.82 ft.) 0.25 m (0.82 ft.) 0.25 m (0.82 ft.)
Focal length 25 mm (0.97 in.) 25 mm (0.97 in.) 25 mm (0.97 in.) 25 mm (0.97 in.) 25 mm (0.97 in.) 25 mm (0.97 in.) 25 mm (0.97 in.) 25 mm (0.97 in.)
Spatial resolution (IFOV) 0.92 mrad 0.68 mrad 0.68 mrad 0.68 mrad 0.68 mrad 0.68 mrad 0.68 mrad 0.68 mrad
Lens identification Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic
F-number 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Image frequency 30 Hz 30 Hz 30 Hz 30 Hz 30 Hz 30 Hz 30 Hz 30 Hz
Focus Automatic (one shot) or manual Automatic (one shot) or manual Automatic (one shot) or manual Automatic (one shot) or manual Automatic (one shot) or manual Continuous, one shot or manual Continuous, one shot or manual Continuous, one shot or manual
Digital zoom 1–4× continuous 1–4× continuous 1–4× continuous 1–8× continuous 1–4× continuous 1–8× continuous 1–8× continuous 1–8× continuous
Digital image enhancement Adaptive digital noise reduction Adaptive digital noise reduction Adaptive digital noise reduction Adaptive digital noise reduction Adaptive digital noise reduction Adaptive digital noise reduction Adaptive digital noise reduction Adaptive digital noise reduction

Detector data

Detector type Focal plane array (FPA), uncooled microbolometer Focal plane array (FPA), uncooled microbolometer Focal plane array (FPA), uncooled microbolometer Focal plane array (FPA), uncooled microbolometer Focal plane array (FPA), uncooled microbolometer Focal plane array (FPA), uncooled microbolometer Focal plane array (FPA), uncooled microbolometer Focal plane array (FPA), uncooled microbolometer
Spectral range 7.5–14 µm 7.5–14 µm 7.5–14 µm 7.5–14 µm 7.5–14 µm 7.5–14 µm 7.5–14 µm 7.5–14 µm
Detector pitch 17 µm 17 µm 17 µm 17 µm 17 µm 17 µm 17 µm 17 µm

Image presentation

Display Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels Built-in touch screen, 4.3 in. wide screen LCD, 800 × 480 pixels
Display type Capacitive touch screen Capacitive touch screen Capacitive touch screen Capacitive touch screen Capacitive touch screen Capacitive touch screen Capacitive touch screen Capacitive touch screen
Auto orientation Automatic landscape or portrait Automatic landscape or portrait Automatic landscape or portrait Automatic landscape or portrait Automatic landscape or portrait Automatic landscape or portrait Automatic landscape or portrait Automatic landscape or portrait
Automatic image adjustment Continuous, histogram based Continuous, histogram based Continuous, histogram based Continuous, histogram based Continuous, histogram based Continuous, histogram based Continuous, histogram based Continuous, histogram based
Viewfinder - - - Built-in 800 × 480 pixels - Built-in 800 × 480 pixels Built-in 800 × 480 pixels Built-in 800 × 480 pixels
Manual image adjustment Linear based; possible to adjust level/span/max./min. Linear based; possible to adjust level/span/max./min. Linear based; possible to adjust level/span/max./min. Linear based; possible to adjust level/span/max./min. Linear based; possible to adjust level/span/max./min. Linear based; possible to adjust level/span/max./min. Linear based; possible to adjust level/span/max./min. Linear based; possible to adjust level/span/max./min.

Image presentation modes

Infrared image Full-color IR image Full-color IR image Full-color IR image Full-color IR image Full-color IR image Full-color IR image Full-color IR image Full-color IR image
Visual image Full color visual image Full color visual image Full color visual image Full color visual image Full color visual image Full color visual image Full color visual image Full color visual image
Thermal Thermal image with enhanced detail presentation Thermal image with enhanced detail presentation Thermal image with enhanced detail presentation Thermal image with enhanced detail presentation Thermal image with enhanced detail presentation Thermal image with enhanced detail presentation Thermal image with enhanced detail presentation Thermal image with enhanced detail presentation
Picture in Picture Resizable and movable IR area on visual image Resizable and movable IR area on visual image Resizable and movable IR area on visual image Resizable and movable IR area on visual image Resizable and movable IR area on visual image Resizable and movable IR area on visual image Resizable and movable IR area on visual image Resizable and movable IR area on visual image

Measurement

Object temperature range
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • +300°C to +2000°C (+572°F to +3632°F)
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • +300°C to +2000°C (+572°F to +3632°F)
  • –40°C to +150°C (–40°F to +302°F)
  • +100°C to +650°C (+212°F to +1202°F)
  • +300°C to +2000°C (+572°F to +3632°F)
Accuracy ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal. ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal. ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal. ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.
  • ±1°C (±1.8°F) or ±1% of reading for limited temperature range.
  • ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.
±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal. ±1°C (±1.8°F) or ±1% of reading for limited temperature range for measuring object within +5°C to +120°C (+ 41ºF to +248 ºF) and ambient temperatures of +10°C to +35°C (+49ºF to +95ºF). This is only valid for the temperature range -40°C to +120°C (-40°F to +248°F).
  • ±1°C (±1.8°F) or ±1% of reading for limited temperature range.
  • ±2°C (±3.6°F) or 2%, whichever is greater, at 25°C (77°F) nominal.

Measurement analysis

Spotmeter 10 10 10 5 10 10 10 10
Area 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis) 5 + 5 areas (boxes or circles) with max./min./average (in post-acquisition analysis)
Automatic hot/cold detection Auto hot or cold spotmeter markers within area Auto hot or cold spotmeter markers within area Auto hot or cold spotmeter markers within area Auto hot or cold spotmeter markers within area Auto hot or cold spotmeter markers within area Auto hot or cold spotmeter markers within area and profile Auto hot or cold spotmeter markers within area and profile Auto hot or cold spotmeter markers within area and profile
Profile - - - - - 1 line profile with max/min temp 1 line profile with max/min temp 1 line profile with max/min temp
Measurement presets No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2 No measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
User presets (in live images) The user can select and combine measurements from any number of available spots/boxes/circles/delta The user can select and combine measurements from any number of available spots/boxes/circles/delta The user can select and combine measurements from any number of available spots/boxes/circles/delta The user can select and combine measurements from any number of available spots/boxes/circles/delta The user can select and combine measurements from any number of available spots/boxes/circles/delta The user can select and combine measurements from any number of available spots/boxes/circles/profiles/delta The user can select and combine measurements from any number of available spots/boxes/circles/profiles/delta The user can select and combine measurements from any number of available spots/boxes/circles/profiles/delta
Difference temperature Delta temperature between measurement functions or reference temperature Delta temperature between measurement functions or reference temperature Delta temperature between measurement functions or reference temperature Delta temperature between measurement functions or reference temperature Delta temperature between measurement functions or reference temperature Delta temperature between measurement functions or reference temperature Delta temperature between measurement functions or reference temperature Delta temperature between measurement functions or reference temperature
Reference temperature Manually set using difference temperature Manually set using difference temperature Manually set using difference temperature Manually set using difference temperature Manually set using difference temperature Manually set using difference temperature Manually set using difference temperature Manually set using difference temperature
Atmospheric transmission correction Automatic, based on inputs for distance, atmospheric temperature and relative humidity Automatic, based on inputs for distance, atmospheric temperature and relative humidity Automatic, based on inputs for distance, atmospheric temperature and relative humidity Automatic, based on inputs for distance, atmospheric temperature and relative humidity Automatic, based on inputs for distance, atmospheric temperature and relative humidity Automatic, based on inputs for distance, atmospheric temperature and relative humidity Automatic, based on inputs for distance, atmospheric temperature and relative humidity Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics transmission correction Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors Automatic, based on signals from internal sensors
Emissivity correction Variable from 0.01 to 1.0 or selected from materials list Variable from 0.01 to 1.0 or selected from materials list Variable from 0.01 to 1.0 or selected from materials list Variable from 0.01 to 1.0 or selected from materials list Variable from 0.01 to 1.0 or selected from materials list Variable from 0.01 to 1.0 or selected from materials list Variable from 0.01 to 1.0 or selected from materials list Variable from 0.01 to 1.0 or selected from materials list
Emissivity table Emissivity table of predefined materials Emissivity table of predefined materials Emissivity table of predefined materials Emissivity table of predefined materials Emissivity table of predefined materials Emissivity table of predefined materials Emissivity table of predefined materials Emissivity table of predefined materials
Reflected apparent temperature correction Automatic, based on input of reflected temperature Automatic, based on input of reflected temperature Automatic, based on input of reflected temperature Automatic, based on input of reflected temperature Automatic, based on input of reflected temperature Automatic, based on input of reflected temperature Automatic, based on input of reflected temperature Automatic, based on input of reflected temperature
External optics/windows correction Automatic, based on inputs of window transmission and temperature Automatic, based on inputs of window transmission and temperature Automatic, based on inputs of window transmission and temperature Automatic, based on inputs of window transmission and temperature Automatic, based on inputs of window transmission and temperature Automatic, based on inputs of window transmission and temperature Automatic, based on inputs of window transmission and temperature Automatic, based on inputs of window transmission and temperature
Measurement corrections Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation Emissivity, reflected temperature, relative humidity, atmospheric temperature, object distance, external IR window compensation
Colors (palettes) Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

Alarm

Color Alarm (isotherm) Above/below/interval Above/below/interval Above/below/interval Above/below/interval Above/below/interval Above/below/interval Above/below/interval Above/below/interval
Measurement function alarm Audible/visual alarms (above/below) on any selected measurement function Audible/visual alarms (above/below) on any selected measurement function Audible/visual alarms (above/below) on any selected measurement function Audible/visual alarms (above/below) on any selected measurement function Audible/visual alarms (above/below) on any selected measurement function Audible/visual alarms (above/below) on any selected measurement function Audible/visual alarms (above/below) on any selected measurement function Audible/visual alarms (above/below) on any selected measurement function
Screening - Difference temperature alarm, audible Difference temperature alarm, audible Difference temperature alarm, audible Difference temperature alarm, audible Difference temperature alarm, audible Difference temperature alarm, audible Difference temperature alarm, audible

Set-up

Set-up commands Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, Bluetooth, Language, Time & units, Camera information Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information Define user presets, Save options, Programmable button, Reset options, Set up camera, Wi-Fi, GPS & compass, Bluetooth, Language, Time & units, Camera information

Service functions

Camera software update Use PC software Use PC software Use PC software Use PC software Use PC software Use PC software Use PC software Use PC software

Storage of images

Image storage Standard JPEG, including digital photo and measurement data, on memory card Standard JPEG, including digital photo and measurement data, on memory card Standard JPEG, including digital photo and measurement data, on memory card Standard JPEG, including digital photo and measurement data, on memory card Standard JPEG, including digital photo and measurement data, on memory card Standard JPEG, including digital photo and measurement data, on memory card Standard JPEG, including digital photo and measurement data, on memory card Standard JPEG, including digital photo and measurement data, on memory card
Storage media Removable memory SD card Removable memory SD card Removable memory SD card Removable memory SD card Removable memory SD card Removable memory SD card Removable memory SD card Removable memory SD card
Image storage mode
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
  • Simultaneous storage of thermal and digital photo in same JPEG file.
  • Optional to store digital photo as a separate JPEG file.
Time lapse 15 seconds to 24 hours 15 seconds to 24 hours 15 seconds to 24 hours 15 seconds to 24 hours 15 seconds to 24 hours 15 seconds to 24 hours 15 seconds to 24 hours 15 seconds to 24 hours
File formats Standard JPEG, measurement data included Standard JPEG, measurement data included Standard JPEG, measurement data included Standard JPEG, measurement data included Standard JPEG, measurement data included Standard JPEG, measurement data included Standard JPEG, measurement data included Standard JPEG, measurement data included
File formats, visual Standard JPEG, automatically associated with corresponding thermal image Standard JPEG, automatically associated with corresponding thermal image Standard JPEG, automatically associated with corresponding thermal image Standard JPEG, automatically associated with corresponding thermal image Standard JPEG, automatically associated with corresponding thermal image Standard JPEG, automatically associated with corresponding thermal image Standard JPEG, automatically associated with corresponding thermal image Standard JPEG, automatically associated with corresponding thermal image

Image annotations (in still images)

Voice 60 seconds (via Bluetooth) stored with the image 60 seconds (via Bluetooth) stored with the image 60 seconds (via Bluetooth) stored with the image 60 seconds (via Bluetooth) stored with the image 60 seconds (via Bluetooth) stored with the image 60 seconds (via Bluetooth) stored with the image 60 seconds (via Bluetooth) stored with the image 60 seconds (via Bluetooth) stored with the image
Text Add table. Select between predefined templates or create your own in Add table. Select between predefined templates or create your own in Add table. Select between predefined templates or create your own in Add table. Select between predefined templates or create your own in Add table. Select between predefined templates or create your own in Add table. Select between predefined templates or create your own in Add table. Select between predefined templates or create your own in Add table. Select between predefined templates or create your own in
Image description Add short note (stored in JPEG EXIF tag) Add short note (stored in JPEG EXIF tag) Add short note (stored in JPEG EXIF tag) Add short note (stored in JPEG EXIF tag) Add short note (stored in JPEG EXIF tag) Add short note (stored in JPEG EXIF tag) Add short note (stored in JPEG EXIF tag) Add short note (stored in JPEG EXIF tag)
Sketch Draw on thermal/digital photo or add predefined stamps Draw on thermal/digital photo or add predefined stamps Draw on thermal/digital photo or add predefined stamps Draw on thermal/digital photo or add predefined stamps Draw on thermal/digital photo or add predefined stamps Draw on thermal/digital photo or add predefined stamps Draw on thermal/digital photo or add predefined stamps Draw on thermal/digital photo or add predefined stamps
Wireless connection (Bluetooth) to: meters with Wireless connection (Bluetooth) to: meters with Wireless connection (Bluetooth) to: meters with Wireless connection (Bluetooth) to: meters with Wireless connection (Bluetooth) to: meters with Wireless connection (Bluetooth) to: meters with Wireless connection (Bluetooth) to: meters with Wireless connection (Bluetooth) to: meters with
Report generation
  • Separate PC software with extensive report generation
  • Instant Report (*.pdf file) in camera
  • Separate PC software with extensive report generation
  • Instant Report (*.pdf file) in camera
  • Separate PC software with extensive report generation
  • Instant Report (*.pdf file) in camera
  • Separate PC software with extensive report generation
  • Instant Report (*.pdf file) in camera
  • Separate PC software with extensive report generation
  • Instant Report (*.pdf file) in camera
  • Separate PC software with extensive report generation
  • Instant Report (*.pdf file) in camera
  • Separate PC software with extensive report generation
  • Instant Report (*.pdf file) in camera
  • Separate PC software with extensive report generation

Geographic Information System

GPS - Location data automatically added to every still image from built-in GPS Location data automatically added to every still image from built-in GPS Location data automatically added to every still image from built-in GPS Location data automatically added to every still image from built-in GPS Location data automatically added to every still image from built-in GPS Location data automatically added to every still image from built-in GPS Location data automatically added to every still image from built-in GPS
Compass - Camera direction automatically added to every still image Camera direction automatically added to every still image Camera direction automatically added to every still image Camera direction automatically added to every still image Camera direction automatically added to every still image Camera direction automatically added to every still image Camera direction automatically added to every still image

Video recording in camera

Non-radiometric IR video recording MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card
Radiometric IR video recording - - - - - - CSQ to memory card CSQ to memory card
Visual video recording MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card MPEG-4 to memory card

Video streaming

Radiometric IR video streaming Full dynamic to PC using USB or to mobile devices using Wi-Fi. - Full dynamic to PC using USB or to mobile devices using Wi-Fi. - Full dynamic to PC using USB or to mobile devices using Wi-Fi. Full dynamic to PC using USB or to mobile devices using Wi-Fi. Full dynamic to PC using USB or to mobile devices using Wi-Fi. Full dynamic to PC using USB or to mobile devices using Wi-Fi.
Non-radiometric IR video streaming
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
Visual video streaming
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB
  • MPEG-4 using Wi-Fi
  • Uncompressed colorized video using USB

Digital camera

Built-in digital camera 5 Mpixels with LED light (photo as separate image) 5 Mpixels with LED light (photo as separate image) 5 Mpixels with LED light (photo as separate image) 5 Mpixels with LED light (photo as separate image) 5 Mpixels with LED light (photo as separate image) 5 Mpixels with LED light (photo as separate image) 5 Mpixels with LED light (photo as separate image) 5 Mpixels with LED light (photo as separate image)
Digital camera, FOV Adapts to the IR lens Adapts to the IR lens Adapts to the IR lens Adapts to the IR lens Adapts to the IR lens Adapts to the IR lens Adapts to the IR lens Adapts to the IR lens
Video lamp Built-in LED light Built-in LED light Built-in LED light Built-in LED light Built-in LED light Built-in LED light Built-in LED light Built-in LED light

Laser pointer

Laser Activated by dedicated button Activated by dedicated button Activated by dedicated button Activated by dedicated button Activated by dedicated button Activated by dedicated button Activated by dedicated button Activated by dedicated button
Laser alignment Position is automatic displayed on the IR image Position is automatic displayed on the IR image Position is automatic displayed on the IR image Position is automatic displayed on the IR image Position is automatic displayed on the IR image Position is automatic displayed on the IR image Position is automatic displayed on the IR image Position is automatic displayed on the IR image
Laser classification Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2
Laser type Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red) Semiconductor AlGaInP diode laser, 1 mW, 635 nm (red)

Data communication interfaces

Interfaces USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output
/Bluetooth Communication with headset and external sensors Communication with headset and external sensors Communication with headset and external sensors Communication with headset and external sensors Communication with headset and external sensors Communication with headset and external sensors Communication with headset and external sensors Communication with headset and external sensors
Wi-Fi Peer to peer (ad hoc) or infrastructure (network) Peer to peer (ad hoc) or infrastructure (network) Peer to peer (ad hoc) or infrastructure (network) Peer to peer (ad hoc) or infrastructure (network) Peer to peer (ad hoc) or infrastructure (network) Peer to peer (ad hoc) or infrastructure (network) Peer to peer (ad hoc) or infrastructure (network) Peer to peer (ad hoc) or infrastructure (network)
SD Card One card slot for removable SD memory cards One card slot for removable SD memory cards One card slot for removable SD memory cards One card slot for removable SD memory cards One card slot for removable SD memory cards One card slot for removable SD memory cards One card slot for removable SD memory cards One card slot for removable SD memory cards

USB

USB
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
  • USB-A: Connect external USB device
  • USB Mini-B: Data transfer to and from PC / uncompressed colorized video
USB, standard USB 2.0 high speed USB 2.0 high speed USB 2.0 high speed USB 2.0 high speed USB 2.0 high speed USB 2.0 high speed USB 2.0 high speed USB 2.0 high speed

Video output

Video out Digital video output (DVI) Digital video output (DVI) Digital video output (DVI) Digital video output (DVI) Digital video output (DVI) Digital video output (DVI) Digital video output (DVI) Digital video output (DVI)
Video, connector type HDMI compatible HDMI compatible HDMI compatible HDMI compatible HDMI compatible HDMI compatible HDMI compatible HDMI compatible

Radio

Wi-Fi
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
  • Standard: 802.11 b/g
  • Frequency range: 2412–2462 MHz
  • Max. output power: 15 dBm
/Bluetooth Frequency range: 2402–2480 MHz Frequency range: 2402–2480 MHz Frequency range: 2402–2480 MHz Frequency range: 2402–2480 MHz Frequency range: 2402–2480 MHz Frequency range: 2402–2480 MHz Frequency range: 2402–2480 MHz Frequency range: 2402–2480 MHz
Antenna Internal Internal Internal Internal Internal Internal Internal Internal

Power system

Battery type Rechargeable Li ion battery Rechargeable Li ion battery Rechargeable Li ion battery Rechargeable Li ion battery Rechargeable Li ion battery Rechargeable Li ion battery Rechargeable Li ion battery Rechargeable Li ion battery
Battery operating time > 2.5 hours at 25°C (+68°F) and typical use > 2.5 hours at 25°C (+68°F) and typical use > 2.5 hours at 25°C (+68°F) and typical use > 2.5 hours at 25°C (+68°F) and typical use > 2.5 hours at 25°C (+68°F) and typical use > 2.5 hours at 25°C (+68°F) and typical use > 2.5 hours at 25°C (+68°F) and typical use > 2.5 hours at 25°C (+68°F) and typical use
Charging system In camera (AC adapter or 12 V from a vehicle) or 2-bay charger In camera (AC adapter or 12 V from a vehicle) or 2-bay charger In camera (AC adapter or 12 V from a vehicle) or 2-bay charger In camera (AC adapter or 12 V from a vehicle) or 2-bay charger In camera (AC adapter or 12 V from a vehicle) or 2-bay charger In camera (AC adapter or 12 V from a vehicle) or 2-bay charger In camera (AC adapter or 12 V from a vehicle) or 2-bay charger In camera (AC adapter or 12 V from a vehicle) or 2-bay charger
Charging time 2.5 h to 90 % capacity, charging status indicated by LED's 2.5 h to 90 % capacity, charging status indicated by LED's 2.5 h to 90 % capacity, charging status indicated by LED's 2.5 h to 90 % capacity, charging status indicated by LED's 2.5 h to 90 % capacity, charging status indicated by LED's 2.5 h to 90 % capacity, charging status indicated by LED's 2.5 h to 90 % capacity, charging status indicated by LED's 2.5 h to 90 % capacity, charging status indicated by LED's
Charging temperature 0°C to +45°C (+32°F to +113°F) 0°C to +45°C (+32°F to +113°F) 0°C to +45°C (+32°F to +113°F) 0°C to +45°C (+32°F to +113°F) 0°C to +45°C (+32°F to +113°F) 0°C to +45°C (+32°F to +113°F) 0°C to +45°C (+32°F to +113°F) 0°C to +45°C (+32°F to +113°F)
External power operation AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional) AC adapter 90–260 VAC, 50/60 Hz or 12 V from a vehicle (cable with standard plug, optional)

Environmental data

Operating temperature range –15°C to +50°C (+5°F to +122°F) –15°C to +50°C (+5°F to +122°F) –15°C to +50°C (+5°F to +122°F) –15°C to +50°C (+5°F to +122°F) –15°C to +50°C (+5°F to +122°F) –15°C to +50°C (+5°F to +122°F) –15°C to +50°C (+5°F to +122°F) –15°C to +50°C (+5°F to +122°F)
Storage temperature range –40°C to +70°C (–40°F to +158°F) –40°C to +70°C (–40°F to +158°F) –40°C to +70°C (–40°F to +158°F) –40°C to +70°C (–40°F to +158°F) –40°C to +70°C (–40°F to +158°F) –40°C to +70°C (–40°F to +158°F) –40°C to +70°C (–40°F to +158°F) –40°C to +70°C (–40°F to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
EMC
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
  • ETSI EN 301 489-1 (radio)
  • ETSI EN 301 489-17
  • EN 61000-6-2 (Immunity)
  • EN 61000-6-3 (Emission)
  • FCC 47 CFR Part 15 Class B (Emission)
  • ICES-003
Radio spectrum
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
  • ETSI EN 300 328
  • FCC Part 15.247
  • RSS-247 Issue 2
Encapsulation IP 54 (IEC 60529) IP 54 (IEC 60529) IP 54 (IEC 60529) IP 54 (IEC 60529) IP 54 (IEC 60529) IP 54 (IEC 60529) IP 54 (IEC 60529) IP 54 (IEC 60529)
Shock 25 g (IEC 60068-2-27) 25 g (IEC 60068-2-27) 25 g (IEC 60068-2-27) 25 g (IEC 60068-2-27) 25 g (IEC 60068-2-27) 25 g (IEC 60068-2-27) 25 g (IEC 60068-2-27) 25 g (IEC 60068-2-27)
Vibration 2 g (IEC 60068-2-6) 2 g (IEC 60068-2-6) 2 g (IEC 60068-2-6) 2 g (IEC 60068-2-6) 2 g (IEC 60068-2-6) 2 g (IEC 60068-2-6) 2 g (IEC 60068-2-6) 2 g (IEC 60068-2-6)
Safety EN/UL/CSA/PSE 60950-1 EN/UL/CSA/PSE 60950-1 EN/UL/CSA/PSE 60950-1 EN/UL/CSA/PSE 60950-1 EN/UL/CSA/PSE 60950-1 EN/UL/CSA/PSE 60950-1 EN/UL/CSA/PSE 60950-1 EN/UL/CSA/PSE 60950-1

Physical data

Weight 1.3 kg (2.87 lb.) 1.3 kg (2.87 lb.) 1.3 kg (2.87 lb.) 1.3 kg (2.87 lb.) 1.3 kg (2.87 lb.) 1.3 kg (2.87 lb.) 1.3 kg (2.87 lb.) 1.3 kg (2.87 lb.)
Camera size, excl. lens (L × W × H) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.) 143 × 195 × 95 mm (5.6 × 7.7 × 3.7 in.)
Tripod mounting UNC ¼"-20 UNC ¼"-20 UNC ¼"-20 UNC ¼"-20 UNC ¼"-20 UNC ¼"-20 UNC ¼"-20 UNC ¼"-20
Housing material Magnesium Magnesium Magnesium Magnesium Magnesium Magnesium Magnesium Magnesium

Shipping information

Packaging, type Cardboard box Cardboard box Cardboard box Cardboard box Cardboard box Cardboard box Cardboard box Cardboard box
List of contents
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Extended calibration certificate
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Printed documentation
  • Tripod adapter
  • USB cable, Std A to Mini-B
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Printed documentation
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Tripod adapter
  • USB cable, Std A to Mini-B
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Extended calibration certificate
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Printed documentation
  • Tripod adapter
  • USB cable, Std A to Mini-B
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Printed documentation
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Large eyecap
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Tripod adapter
  • USB cable, Std A to Mini-B
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Printed documentation
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Tripod adapter
  • USB cable, Std A to Mini-B
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Extended calibration certificate
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Large eyecap
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Printed documentation
  • Tripod adapter
  • USB cable, Std A to Mini-B
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Printed documentation
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Large eyecap
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Tripod adapter
  • USB cable, Std A to Mini-B
  • Infrared camera with lens
  • Battery (2 ea.)
  • Battery charger
  • Bluetooth headset
  • Calibration certificate
  • Extended calibration certificate
  • HDMI-DVI cable
  • HDMI-HDMI cable
  • Hard transport case
  • Large eyecap
  • Lens cap
  • Memory card
  • Neck strap
  • Power supply, incl. multi-plugs
  • Printed documentation
  • Tripod adapter
  • USB cable, Std A to Mini-B
Packaging, weight 6.6 kg (14.6 lb.) 6.6 kg (14.6 lb.) 6.6 kg (14.6 lb.) 6.6 kg (14.6 lb.) 6.6 kg (14.6 lb.) 6.6 kg (14.6 lb.) 6.95 kg (15.3 lb.) 6.6 kg (14.6 lb.)
Packaging, size 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.) 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.) 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.) 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.) 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.) 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.) 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.) 495 × 192 × 370 mm (19.49 × 7.56 × 14.57 in.)
EAN-13 7332558011874 7332558006757 7332558011928 7332558006931 7332558008713 7332558011980 7332558007099 7332558012086
UPC-12 845188012984 845188007102 845188013035 845188007287 845188009236 845188013097 845188007430 845188013189
Country of origin Sweden Sweden Sweden Sweden Sweden Sweden Sweden Sweden
