Metadata |
| Part No. |
55903-2923 |
55903-5823 |
55904-7623 |
| Product name |

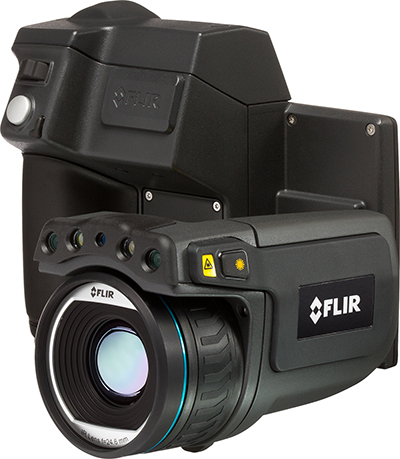

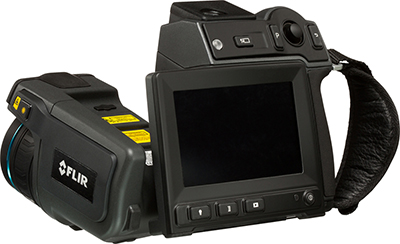

FLIR T600bx 45° (incl. Wi-Fi and Ext.
cal.) |
FLIR T620bx 45° (incl. Wi-Fi and Ext.
cal.) |
FLIR T640bx 45° (incl. Wi-Fi and Ext.
cal.) |
| Revision |
35847 |
35880 |
35893 |
| Last modified |
2016-05-24 10:37 |
2016-05-25 13:24 |
2016-05-25 14:05 |
Imaging and optical data |
| IR resolution |
480 × 360 pixels
|
640 × 480 pixels
|
640 × 480 pixels
|
|
No |
Yes |
Yes
|
| Thermal sensitivity/NETD |
<30 mK @ +30°C
(+86°F) |
<30 mK @ +30°C
(+86°F) |
<30 mK @ +30°C
(+86°F) |
| Field of view (FOV) |
45° × 34°
|
45° × 34°
|
45° × 34°
|
| Minimum focus distance |
0.15 m (0.49 ft.)
|
0.15 m (0.49 ft.)
|
0.15 m (0.49 ft.)
|
| Focal length |
13 mm (0.52 in.)
|
13 mm (0.52 in.)
|
13 mm (0.52 in.)
|
| Spatial resolution (IFOV) |
1.73 mrad
|
1.30 mrad
|
1.30 mrad
|
| Lens identification |
Automatic
|
Automatic
|
Automatic
|
| F-number |
1.0 |
1.0 |
1.0
|
| Image frequency |
30 Hz
|
30 Hz
|
30 Hz
|
| Focus |
Automatic (one shot) or
manual |
Automatic (one shot) or
manual |
Continuous, one shot or
manual |
| Digital zoom |
1–4× continuous
|
1–4× continuous
|
1–8× continuous
|
| Digital image enhancement |
Adaptive digital noise
reduction |
Adaptive digital noise
reduction |
Adaptive digital noise
reduction |
Detector data |
| Detector type |
Focal plane array
(FPA), uncooled microbolometer |
Focal plane array
(FPA), uncooled microbolometer |
Focal plane array
(FPA), uncooled microbolometer |
| Spectral range |
7.5–14 µm
|
7.5–14 µm
|
7.5–14 µm
|
| Detector pitch |
17 µm
|
17 µm
|
17 µm
|
Image presentation |
| Display |
Built-in touch screen,
4.3 in. wide screen LCD, 800 × 480 pixels |
Built-in touch screen,
4.3 in. wide screen LCD, 800 × 480 pixels |
Built-in touch screen,
4.3 in. wide screen LCD, 800 × 480 pixels |
| Display type |
Capacitive touch screen
|
Capacitive touch screen
|
Capacitive touch screen
|
| Auto orientation |
Automatic landscape or
portrait |
Automatic landscape or
portrait |
Automatic landscape or
portrait |
| Automatic image adjustment |
Continuous, histogram
based |
Continuous, histogram
based |
Continuous, histogram
based |
| Viewfinder |
- |
- |
Built-in 800 × 480
pixels |
| Manual image adjustment |
Linear based; possible
to adjust level/span/max./min. |
Linear based; possible
to adjust level/span/max./min. |
Linear based; possible
to adjust level/span/max./min. |
Image presentation modes |
| Infrared image |
Full-color IR image
|
Full-color IR image
|
Full-color IR image
|
| Visual image |
Full color visual image
|
Full color visual image
|
Full color visual image
|
| Thermal |
Thermal image with
enhanced detail presentation |
Thermal image with
enhanced detail presentation |
Thermal image with
enhanced detail presentation |
| Picture in Picture |
Resizable and movable
IR area on visual image |
Resizable and movable
IR area on visual image |
Resizable and movable
IR area on visual image |
Measurement |
| Object temperature range |
- –40°C to +150°C (–40°F to +302°F)
- +100°C to +350°C (+212°F
to +662°F)
|
- –40°C to +150°C (–40°F to +302°F)
- +100°C to +650°C (+212°F
to +1202°F)
|
- –40°C to +150°C (–40°F to +302°F)
- +100°C to +650°C (+212°F
to +1202°F)
|
| Accuracy |
±2°C (±3.6°F) or 2%, whichever is
greater, at 25°C (77°F) nominal. |
±2°C (±3.6°F) or 2%, whichever is
greater, at 25°C (77°F) nominal. |
±2°C (±3.6°F) or 2%, whichever is
greater, at 25°C (77°F) nominal. |
Measurement analysis |
| Spotmeter |
10 |
10 |
10
|
| Area |
5 + 5 areas (boxes or
circles) with max./min./average (in post-acquisition analysis)
|
5 + 5 areas (boxes or
circles) with max./min./average (in post-acquisition analysis)
|
5 + 5 areas (boxes or
circles) with max./min./average (in post-acquisition analysis)
|
| Automatic hot/cold detection |
Auto hot or cold
spotmeter markers within area |
Auto hot or cold
spotmeter markers within area |
Auto hot or cold
spotmeter markers within area and profile |
| Profile |
- |
- |
1 line profile with
max/min temp |
| Measurement presets |
No measurements, Center
spot, Hot spot, Cold spot, User preset 1, User preset 2 |
No measurements, Center
spot, Hot spot, Cold spot, User preset 1, User preset 2 |
No measurements, Center
spot, Hot spot, Cold spot, User preset 1, User preset 2
|
| User presets (in live images) |
The user can select and
combine measurements from any number of available
spots/boxes/circles/delta |
The user can select and
combine measurements from any number of available
spots/boxes/circles/delta |
The user can select and
combine measurements from any number of available
spots/boxes/circles/profiles/delta |
| Difference temperature |
Delta temperature
between measurement functions or reference temperature |
Delta temperature
between measurement functions or reference temperature |
Delta temperature
between measurement functions or reference temperature
|
| Reference temperature |
Manually set using
difference temperature |
Manually set using
difference temperature |
Manually set using
difference temperature |
| Atmospheric transmission correction |
Automatic, based on
inputs for distance, atmospheric temperature and relative humidity
|
Automatic, based on
inputs for distance, atmospheric temperature and relative humidity
|
Automatic, based on
inputs for distance, atmospheric temperature and relative humidity
|
| Optics transmission correction |
Automatic, based on
signals from internal sensors |
Automatic, based on
signals from internal sensors |
Automatic, based on
signals from internal sensors |
| Emissivity correction |
Variable from 0.01 to
1.0 or selected from materials list |
Variable from 0.01 to
1.0 or selected from materials list |
Variable from 0.01 to
1.0 or selected from materials list |
| Emissivity table |
Emissivity table of
predefined materials |
Emissivity table of
predefined materials |
Emissivity table of
predefined materials |
| Reflected apparent temperature
correction |
Automatic, based on
input of reflected temperature |
Automatic, based on
input of reflected temperature |
Automatic, based on
input of reflected temperature |
| External optics/windows correction |
Automatic, based on
inputs of window transmission and temperature |
Automatic, based on
inputs of window transmission and temperature |
Automatic, based on
inputs of window transmission and temperature |
| Measurement corrections |
Emissivity, reflected
temperature, relative humidity, atmospheric temperature, object distance,
external IR window compensation |
Emissivity, reflected
temperature, relative humidity, atmospheric temperature, object distance,
external IR window compensation |
Emissivity, reflected
temperature, relative humidity, atmospheric temperature, object distance,
external IR window compensation |
| Colors (palettes) |
Iron, Rainbow, Rainbow
HC, White hot, Black hot, Arctic, Lava |
Iron, Rainbow, Rainbow
HC, White hot, Black hot, Arctic, Lava |
Iron, Rainbow, Rainbow
HC, White hot, Black hot, Arctic, Lava |
Alarm |
| Color Alarm (isotherm) |
Above/below/interval
|
Above/below/interval
|
Above/below/interval
|
| Measurement function alarm |
Audible/visual alarms
(above/below) on any selected measurement function |
Audible/visual alarms
(above/below) on any selected measurement function |
Audible/visual alarms
(above/below) on any selected measurement function |
| Humidity alarm |
1 humidity alarm,
including dew point alarm |
1 humidity alarm,
including dew point alarm |
1 humidity alarm,
including dew point alarm |
| Screening |
- |
Difference temperature
alarm, audible |
Difference temperature
alarm, audible |
| Insulation alarm |
1 insulation alarm
|
1 insulation alarm
|
1 insulation alarm
|
Set-up |
| Set-up commands |
Define user presets,
Save options, Programmable button, Reset options, Set up camera, Wi-Fi,
Bluetooth, Language, Time & units, Camera information
|
Define user presets,
Save options, Programmable button, Reset options, Set up camera, Wi-Fi,
GPS & compass, Bluetooth, Language, Time & units, Camera
information |
Define user presets,
Save options, Programmable button, Reset options, Set up camera, Wi-Fi,
GPS & compass, Bluetooth, Language, Time & units, Camera
information |
Service functions |
| Camera software update |
Use PC software
|
Use PC software
|
Use PC software
|
Storage of images |
| Image storage |
Standard JPEG,
including digital photo and measurement data, on memory card
|
Standard JPEG,
including digital photo and measurement data, on memory card
|
Standard JPEG,
including digital photo and measurement data, on memory card
|
| Storage media |
Removable memory SD
card |
Removable memory SD
card |
Removable memory SD
card |
| Image storage mode |
- Simultaneous storage of
thermal and digital photo in same JPEG file.
- Optional to store digital
photo as a separate JPEG file.
|
- Simultaneous storage of
thermal and digital photo in same JPEG file.
- Optional to store digital
photo as a separate JPEG file.
|
- Simultaneous storage of
thermal and digital photo in same JPEG file.
- Optional to store digital
photo as a separate JPEG file.
|
| Time lapse |
15 seconds to 24 hours
|
15 seconds to 24 hours
|
15 seconds to 24 hours
|
| File formats |
Standard JPEG,
measurement data included |
Standard JPEG,
measurement data included |
Standard JPEG,
measurement data included |
| File formats, visual |
Standard JPEG,
automatically associated with corresponding thermal image
|
Standard JPEG,
automatically associated with corresponding thermal image
|
Standard JPEG,
automatically associated with corresponding thermal image
|
Image annotations (in still images) |
| Voice |
60 seconds (via
Bluetooth) stored with the image |
60 seconds (via
Bluetooth) stored with the image |
60 seconds (via
Bluetooth) stored with the image |
| Text |
Add table. Select
between predefined templates or create your own in |
Add table. Select
between predefined templates or create your own in |
Add table. Select
between predefined templates or create your own in
|
| Image description |
Add short note (stored
in JPEG EXIF tag) |
Add short note (stored
in JPEG EXIF tag) |
Add short note (stored
in JPEG EXIF tag) |
| Sketch |
Draw on thermal/digital
photo or add predefined stamps |
Draw on thermal/digital
photo or add predefined stamps |
Draw on thermal/digital
photo or add predefined stamps |
|
Wireless connection
(Bluetooth) to: meters with |
Wireless connection
(Bluetooth) to: meters with |
Wireless connection
(Bluetooth) to: meters with
|
| Report generation |
- Separate PC software with
extensive report generation
|
- Instant Report (*.pdf
file) in camera
- Separate PC software with
extensive report generation
|
- Instant Report (*.pdf
file) in camera
- Separate PC software with
extensive report generation
|
Geographic Information System |
| GPS |
- |
Location data
automatically added to every still image from built-in GPS
|
Location data
automatically added to every still image from built-in GPS
|
| Compass |
- |
Camera direction
automatically added to every still image |
Camera direction
automatically added to every still image |
Video recording in camera |
| Non-radiometric IR video recording |
MPEG-4 to memory card
|
MPEG-4 to memory card
|
MPEG-4 to memory card
|
| Visual video recording |
MPEG-4 to memory card
|
MPEG-4 to memory card
|
MPEG-4 to memory card
|
Video streaming |
| Radiometric IR video streaming |
Full dynamic to PC
using USB or to mobile devices using Wi-Fi. |
Full dynamic to PC
using USB or to mobile devices using Wi-Fi. |
Full dynamic to PC
using USB or to mobile devices using Wi-Fi. |
| Non-radiometric IR video streaming |
- MPEG-4 using Wi-Fi
- Uncompressed colorized
video using USB
|
- MPEG-4 using Wi-Fi
- Uncompressed colorized
video using USB
|
- MPEG-4 using Wi-Fi
- Uncompressed colorized
video using USB
|
| Visual video streaming |
- MPEG-4 using Wi-Fi
- Uncompressed colorized
video using USB
|
- MPEG-4 using Wi-Fi
- Uncompressed colorized
video using USB
|
- MPEG-4 using Wi-Fi
- Uncompressed colorized
video using USB
|
Digital camera |
| Built-in digital camera |
5 Mpixels with LED
light (photo as separate image) |
5 Mpixels with LED
light (photo as separate image) |
5 Mpixels with LED
light (photo as separate image) |
| Digital camera, FOV |
Adapts to the IR lens
|
Adapts to the IR lens
|
Adapts to the IR lens
|
| Video lamp |
Built-in LED light
|
Built-in LED light
|
Built-in LED light
|
Laser pointer |
| Laser |
Activated by dedicated
button |
Activated by dedicated
button |
Activated by dedicated
button |
| Laser alignment |
Position is automatic
displayed on the IR image |
Position is automatic
displayed on the IR image |
Position is automatic
displayed on the IR image |
| Laser classification |
Class 2
|
Class 2
|
Class 2
|
| Laser type |
Semiconductor AlGaInP
diode laser, 1 mW, 635 nm (red) |
Semiconductor AlGaInP
diode laser, 1 mW, 635 nm (red) |
Semiconductor AlGaInP
diode laser, 1 mW, 635 nm (red) |
Data communication interfaces |
| Interfaces |
USB-mini, USB-A,
Bluetooth, Wi-Fi, Digital Video Output |
USB-mini, USB-A,
Bluetooth, Wi-Fi, Digital Video Output |
USB-mini, USB-A,
Bluetooth, Wi-Fi, Digital Video Output |
| /Bluetooth |
Communication with
headset and external sensors |
Communication with
headset and external sensors |
Communication with
headset and external sensors |
| Wi-Fi |
Peer to peer (ad hoc)
or infrastructure (network) |
Peer to peer (ad hoc)
or infrastructure (network) |
Peer to peer (ad hoc)
or infrastructure (network) |
| SD Card |
One card slot for
removable SD memory cards |
One card slot for
removable SD memory cards |
One card slot for
removable SD memory cards |
USB |
| USB |
- USB-A: Connect external
USB device
- USB Mini-B: Data transfer
to and from PC / uncompressed colorized video
|
- USB-A: Connect external
USB device
- USB Mini-B: Data transfer
to and from PC / uncompressed colorized video
|
- USB-A: Connect external
USB device
- USB Mini-B: Data transfer
to and from PC / uncompressed colorized video
|
| USB, standard |
USB 2.0 high speed
|
USB 2.0 high speed
|
USB 2.0 high speed
|
Video output |
| Video out |
Digital video output
(DVI) |
Digital video output
(DVI) |
Digital video output
(DVI) |
| Video, connector type |
HDMI compatible
|
HDMI compatible
|
HDMI compatible
|
Radio |
| Wi-Fi |
- Standard: 802.11 b/g
- Frequency range:
2412–2462 MHz
- Max. output power: 15 dBm
|
- Standard: 802.11 b/g
- Frequency range:
2412–2462 MHz
- Max. output power: 15 dBm
|
- Standard: 802.11 b/g
- Frequency range:
2412–2462 MHz
- Max. output power: 15 dBm
|
| /Bluetooth |
Frequency range:
2402–2480 MHz |
Frequency range:
2402–2480 MHz |
Frequency range:
2402–2480 MHz |
| Antenna |
Internal
|
Internal
|
Internal
|
Power system |
| Battery type |
Rechargeable Li ion
battery |
Rechargeable Li ion
battery |
Rechargeable Li ion
battery |
| Battery operating time |
> 2.5 hours at 25°C
(+68°F) and typical use |
> 2.5 hours at 25°C
(+68°F) and typical use |
> 2.5 hours at 25°C
(+68°F) and typical use |
| Charging system |
In camera (AC adapter
or 12 V from a vehicle) or 2-bay charger |
In camera (AC adapter
or 12 V from a vehicle) or 2-bay charger |
In camera (AC adapter
or 12 V from a vehicle) or 2-bay charger |
| Charging time |
2.5 h to 90 % capacity,
charging status indicated by LED's |
2.5 h to 90 % capacity,
charging status indicated by LED's |
2.5 h to 90 % capacity,
charging status indicated by LED's |
| Charging temperature |
0°C to +45°C (+32°F to
+113°F) |
0°C to +45°C (+32°F to
+113°F) |
0°C to +45°C (+32°F to
+113°F) |
| External power operation |
AC adapter 90–260 VAC,
50/60 Hz or 12 V from a vehicle (cable with standard plug, optional)
|
AC adapter 90–260 VAC,
50/60 Hz or 12 V from a vehicle (cable with standard plug, optional)
|
AC adapter 90–260 VAC,
50/60 Hz or 12 V from a vehicle (cable with standard plug, optional)
|
Environmental data |
| Operating temperature range |
–15°C to +50°C (+5°F to +122°F)
|
–15°C to +50°C (+5°F to +122°F)
|
–15°C to +50°C (+5°F to +122°F)
|
| Storage temperature range |
–40°C to +70°C (–40°F to +158°F)
|
–40°C to +70°C (–40°F to +158°F)
|
–40°C to +70°C (–40°F to +158°F)
|
| Humidity (operating and storage) |
IEC 60068-2-30/24 h 95%
relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
|
IEC 60068-2-30/24 h 95%
relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
|
IEC 60068-2-30/24 h 95%
relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
|
| EMC |
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- ICES-003
|
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- ICES-003
|
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- ICES-003
|
| Radio spectrum |
- ETSI EN 300 328
- FCC Part 15.247
- RSS-247 Issue 2
|
- ETSI EN 300 328
- FCC Part 15.247
- RSS-247 Issue 2
|
- ETSI EN 300 328
- FCC Part 15.247
- RSS-247 Issue 2
|
| Encapsulation |
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
| Shock |
25 g (IEC 60068-2-27)
|
25 g (IEC 60068-2-27)
|
25 g (IEC 60068-2-27)
|
| Vibration |
2 g (IEC 60068-2-6)
|
2 g (IEC 60068-2-6)
|
2 g (IEC 60068-2-6)
|
| Safety |
EN/UL/CSA/PSE 60950-1
|
EN/UL/CSA/PSE 60950-1
|
EN/UL/CSA/PSE 60950-1
|
Physical data |
| Weight |
1.3 kg (2.87 lb.)
|
1.3 kg (2.87 lb.)
|
1.3 kg (2.87 lb.)
|
| Camera size, excl. lens (L × W × H) |
143 × 195 × 95 mm (5.6
× 7.7 × 3.7 in.) |
143 × 195 × 95 mm (5.6
× 7.7 × 3.7 in.) |
143 × 195 × 95 mm (5.6
× 7.7 × 3.7 in.) |
| Tripod mounting |
UNC ¼"-20
|
UNC ¼"-20
|
UNC ¼"-20
|
| Housing material |
Magnesium
|
Magnesium
|
Magnesium
|
Shipping information |
| Packaging, type |
Cardboard box
|
Cardboard box
|
Cardboard box
|
| List of contents |
- Infrared camera with lens
- Battery (2 ea.)
- Battery charger
- Bluetooth headset
- Calibration certificate
- Extended calibration
certificate
- HDMI-DVI cable
- HDMI-HDMI cable
- Hard transport case
- Lens cap
- Memory card
- Neck strap
- Power supply, incl.
multi-plugs
- Printed documentation
- Tripod adapter
- USB cable, Std A to
Mini-B
|
- Infrared camera with lens
- Battery (2 ea.)
- Battery charger
- Bluetooth headset
- Calibration certificate
- Extended calibration
certificate
- HDMI-DVI cable
- HDMI-HDMI cable
- Hard transport case
- Lens cap
- Memory card
- Neck strap
- Power supply, incl.
multi-plugs
- Printed documentation
- Tripod adapter
- USB cable, Std A to
Mini-B
|
- Infrared camera with lens
- Battery (2 ea.)
- Battery charger
- Bluetooth headset
- Calibration certificate
- Extended calibration
certificate
- HDMI-DVI cable
- HDMI-HDMI cable
- Hard transport case
- Large eyecap
- Lens cap
- Memory card
- Neck strap
- Power supply, incl.
multi-plugs
- Printed documentation
- Tripod adapter
- USB cable, Std A to
Mini-B
|
| Packaging, weight |
6.6 kg (14.6 lb.)
|
6.6 kg (14.6 lb.)
|
6.6 kg (14.6 lb.)
|
| Packaging, size |
495 × 192 × 370 mm
(19.49 × 7.56 × 14.57 in.) |
495 × 192 × 370 mm
(19.49 × 7.56 × 14.57 in.) |
495 × 192 × 370 mm
(19.49 × 7.56 × 14.57 in.) |
| EAN-13 |
7332558011904
|
7332558011966
|
7332558012031
|
| UPC-12 |
845188013011
|
845188013073
|
845188013134
|
| Country of origin |
Sweden
|
Sweden
|
Sweden
|
