Metadata |
| Part No. |
82506-0201 |
| Product name |

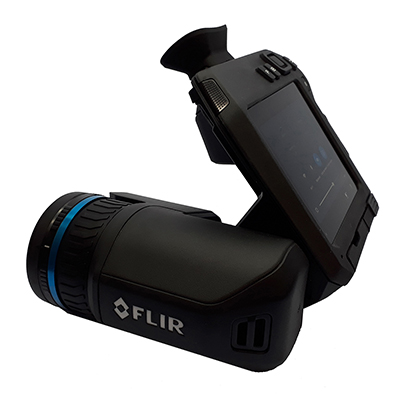

FLIR T840 24° + 14° & 42° |
| Revision |
49273 |
| Last modified |
2018-04-20 10:59 |
Imaging and optical data |
| Infrared resolution |
464 × 348 pixels
|
| (super-resolution)Not supported when using macro. |
In
|
| NETD |
- <30 mK, 42° @
+30°C
- <40 mK, 24° @
+30°C
- <50 mK, 14° @
+30°C
|
| Field of view |
- 42° × 32°
- 24° × 18°
- 14° × 10°
|
| Minimum focus distance |
- 0.15 m, 42°
- 0.15 m, 24°
- 1.0 m, 14°
- Macro mode 71 µm as
option to 24°
|
| Minimum focus distance with MSX |
- 0.65 m, 42°
- 0.5 m, 24°
- 1.0 m, 14°
|
| Focal length |
- 10 mm, 42°
- 17 mm, 24°
- 29 mm, 14°
|
| Spatial resolution (IFOV) |
- 1.66 mrad/pixel, 42°
- 0.90 mrad/pixel, 24°
- 0.52 mrad/pixel, 14°
|
| Available extra lenses |
- 6° (service calibration
required)
|
| Lens identification |
Automatic
|
| f number |
- 1.1, 42°
- 1.3, 24°
- 1.5, 14°
|
| Image frequency |
30 Hz
|
| Focus |
- Continuous LDM
- One-shot LDM
- One-shot contrast
- Manual
|
| Field of view match |
Yes
|
| Digital zoom |
1–6× continuous
|
Detector data |
| Focal plane array/spectral range |
Uncooled
microbolometer/7.5–14 µm |
| Detector pitch |
17 µm
|
Image presentation |
| Resolution (display) |
640 × 480 pixels (VGA)
|
| Surface brightness (cd/m2) |
400
|
| Screen size |
4 in.
|
| Viewing angle |
80°
|
| Color depth (bits) |
24
|
| Aspect ratio |
4:3
|
| Auto-rotation |
Yes
|
| Touchscreen |
Optically bonded PCAP
|
| Display technology |
IPS
|
| Cover glass material |
Dragontrail®
|
| Programmable buttons |
2 |
| Viewfinder |
Yes
|
| Image adjustment |
- Automatic
- Automatic maximum
- Automatic minimum
- Manual
|
Image presentation modes |
| Infrared image |
Yes
|
| Visual image |
Yes
|
|
Yes
|
| Picture in picture |
Resizable and movable
|
| Gallery |
Yes
|
Measurement |
| Camera temperature range |
Object temperature
range |
| Accuracy — for ambient temperature +15 to
+35°C |
|
| –20 to +120°C |
–20 to +100°C |
| ±2°C |
|
| +100 to +120°C |
±2% |
| 0 to +650°C |
0 to +100°C |
| ±2°C |
|
| +100 to + 650°C |
±2% |
| +300 to +1500°C |
+300 to +1500°C |
| ±2% |
|
Measurement analysis |
| Spotmeter |
3 in live mode
|
| Area |
3 in live mode
|
| Automatic hot/cold detection |
Automatic
maximum/minimum markers within area |
| Measurement presets |
- No measurements
- Center spot
- Hot spot
- Cold spot
- User preset 1
- User preset 2
|
| Difference temperature |
Yes
|
| Reference temperature |
Yes
|
| Emissivity correction |
Yes, variable from 0.01
to 1.0 or selected from materials list |
| Measurement corrections |
Yes
|
| External optics/windows correction |
Yes
|
| Screening |
0.5°C accuracy at 37°C with
reference |
Alarm |
| Color alarm (isotherm) |
- Above
- Below
- Interval
- Condensation
(moisture/humidity/dewpoint)
- Insulation
|
| Measurement function alarm |
Audible/visual alarms
(above/below) on any selected measurement function |
Set-up |
| Color palettes |
- Iron
- Gray
- Rainbow
- Arctic
- Lava
- Rainbow HC
|
| Setup commands |
Local adaptation of
units, language, date, and time formats |
| Languages |
21
|
Service functions |
| Camera software update |
Use PC software
|
Storage of images |
| Storage media |
Removable memory: SD
card |
| Time lapse (Periodic image storage) |
10 seconds to 24 hours
(infrared) |
| Remote control operation |
- Using (using USB cable)
- (over Wi-Fi)
|
| Image file format |
Standard JPEG,
measurement data included. Infrared-only mode. |
Image annotations |
| Voice |
60 seconds with
built-in microphone and speaker (and via Bluetooth) on still images and
video |
| Text |
Text from predefined
list or soft keyboard on touchscreen |
| Visual image annotation |
Yes
|
| Image sketch |
Yes: on infrared only
|
| Sketch |
From touchscreen
|
|
Wireless connection
(Bluetooth) to: meters with
|
| Laser distance meter information |
Yes
|
| Area measurement information |
Yes
|
| GPS |
Location data
automatically added to every still image and first frame in video from
built-in GPS |
Video recording in camera |
| Radiometric infrared-video recording |
RTRR (.csq)
|
| Non-radiometric infrared-video
recording |
H.264 to memory card
|
| Visual video recording |
H.264 to memory card
|
Video streaming |
| Radiometric infrared-video streaming
(compressed) |
Over UVC
|
| Non-radiometric video streaming
(compressed: IR, ,
visual, Picture in Picture) |
- H.264 (AVC) over RTSP
(Wi-Fi)
- MPEG4 over RTSP (Wi-Fi)
- MJPEG over UVC and RTSP
(Wi-Fi)
|
| Visual video streaming |
Yes
|
Digital camera |
| Resolution |
5 MP with LED light
|
| Focus |
Fixed
|
| Field of view |
53° × 41°
|
| Video lamp |
Built-in LED light
|
Laser pointer |
| Laser alignment |
Position is
automatically displayed on the infrared image |
| Laser distance meter |
Activated by dedicated
button |
| Laser |
Class 2, 0.05–40
m ±1% of measured distance |
Data communication interfaces |
| Interfaces |
USB 2.0, Bluetooth,
Wi-Fi, DisplayPort |
| /Bluetooth |
Communication with
headset and external sensors |
| Wi-Fi |
Peer to peer (ad hoc)
or infrastructure (network) |
| Audio |
Microphone and speaker
for voice annotation of images |
| USB |
USB Type-C: data
transfer/video/power |
| USB standard |
USB 2.0 High Speed
|
| Video out |
DisplayPort
|
| Video connector type |
DisplayPort over USB
Type-C |
Radio |
| Operating frequency |
Bluetooth + EDR/LE:
2402–2480 MHz WLAN 2.4 GHz: 2412–2462 MHz
WLAN 5 GHz: 5150–5350 MHz (DFS: only slave mode) Note
that frequency band 5150–5350 MHz is for indoor use only, see national
regulations. |
| RF output (EIRP) |
Bluetooth + EDR/LE:
< 10 dBm WLAN: < 17 dBm |
| Antenna |
Integrated PIFA antenna
(gain: maximum 1.4 dBi) |
Power system |
| Battery type |
Rechargeable Li-ion
battery |
| Battery voltage |
3.6 V
|
| Battery operating time |
> 4 hours at
25°C with typical use |
| Charging system |
In camera (AC adapter
or 12 V from a vehicle) or two-bay charger |
| Charging time (using two-bay charger) |
3.5 h to 90% capacity,
on-screen indicator |
| Charging temperature |
0°C to +45°C, except for the Korean market: +10°C to
+45°C
|
| External power operation |
AC adapter 90–260 V AC
(50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
|
| Power management |
Automatic shut-down and
sleep mode |
Environmental data |
| Operating temperature range |
–15 to +50°C |
| Storage temperature range |
–40 to +70°C |
| Humidity (operating and storage) |
IEC 60068-2-30/24
hours, 95% relative humidity, 25–40°C/2 cycles
|
| EMC |
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (immunity)
- EN 61000-6-3 (emission)
- FCC 47 CFR Part 15 Class
B (emission)
|
| Radio spectrum |
- ETSI EN 300 228
- FCC Part 15.249
- RSS-247 Issue 2
|
| Encapsulation |
IP 54 (IEC 60529)
|
| Shock |
25g (IEC 60068-2-27)
|
| Vibration |
2g (IEC 60068-2-6)
|
| Safety |
EN/UL/CSA/PSE 60950-1
|
Physical data |
| Weight (including battery) |
1.4 kg |
| Size (L × W × H) |
- Lens vertical: 150.5 ×
201.3 × 84.1 mm
- Lens horisontal: 150.5 ×
201.3 × 167.3 mm
|
| Battery weight |
195 g |
| Battery size (L × W × H) |
59 × 66 × 94 mm |
| Tripod mounting |
UNC ¼″-20
|
| Housing material |
PCABS with TPE,
magnesium |
| Color |
Black
|
Warranty and service |
| Warranty |
http://www.flir.com/warranty/ |
Shipping information |
| Packaging, type |
Cardboard box
|
| Packaging, contents |
- Extra lens, 14°
- Extra lens, 42°
- Accessory box I:
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable
- USB Type-C to
HDMI and PD adapter
- USB Type-C to USB
Type-C cable (USB 2.0 standard)
- Power supply for battery charger
- Power supply, 15
W/3 A
- Printed
documentation
- Accessory box II:
- Neck strap
- Lens cleaning
cloth
- Lens cap strap
- Small eyecup
- Infrared camera with lens
- Battery (2 ea)
- Battery charger
- Hard transport case
- Lens cap, front
- Lens cap, front and rear
(only for extra lenses)
|
| Packaging, size |
500 × 190 × 370
mm |
| EAN-13 |
4743254004078
|
| UPC-12 |
845188018900
|
| Country of origin |
Estonia
|
