Metadata |
| Part No. |
63906-0604 |
63909-0904 |
63909-1004 |
63907-0804 |
63908-0905 |
| Product name |

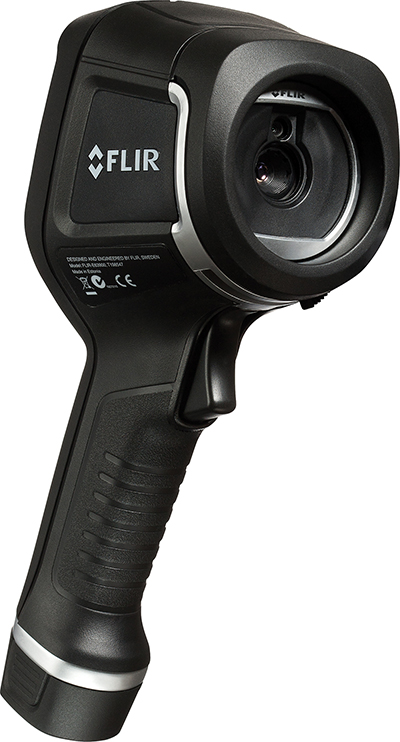

FLIR E4 (incl. Wi-Fi) |
FLIR E5 (incl. Wi-Fi) |
FLIR E5xt (incl. Wi-Fi) |
FLIR E6xt (incl. Wi-Fi) |
FLIR E8xt (incl. Wi-Fi) |
| Revision |
40182 |
40184 |
40184 |
40185 |
40183 |
| Last modified |
2017-02-10 12:37 |
2017-02-10 12:39 |
2017-02-10 12:39 |
2017-02-10 12:40 |
2017-02-10 12:38 |
Imaging and optical data |
| IR resolution |
80 × 60 pixels
|
120 × 90 pixels
|
160 × 120 pixels
|
240 × 180 pixels
|
320 × 240 pixels
|
| Thermal sensitivity/NETD |
<0.15°C (0.27°F) /
<150 mK |
<0.10°C (0.27°F) /
<100 mK |
< 0.10°C (0.27°F) /
< 100 mK |
< 0.06°C (0.11°F) /
< 60 mK |
< 0.05°C (0.09°F) /
< 50 mK |
| Field of view (FOV) |
45° × 34°
|
45° × 34°
|
45° × 34°
|
45° × 34°
|
45° × 34°
|
| Minimum focus distance |
0.5 m (1.6 ft.)
|
0.5 m (1.6 ft.)
|
0.5 m (1.6 ft.)
|
0.5 m (1.6 ft.)
|
0.5 m (1.6 ft.)
|
| Spatial resolution (IFOV) |
10.3 mrad
|
6.9 mrad
|
5.2 mrad
|
3.4 mrad
|
2.6 mrad
|
| F-number |
1.5 |
1.5 |
1.5 |
1.5 |
1.5
|
| Image frequency |
9 Hz |
9 Hz |
9 Hz |
9 Hz |
9 Hz
|
| Focus |
Focus free
|
Focus free
|
Focus free
|
Focus free
|
Focus free
|
Detector data |
| Detector type |
Focal plane array
(FPA), uncooled microbolometer |
Focal plane array
(FPA), uncooled microbolometer |
Focal plane array
(FPA), uncooled microbolometer |
Focal plane array
(FPA), uncooled microbolometer |
Focal plane array
(FPA), uncooled microbolometer |
| Spectral range |
7.5–13 µm
|
7.5–13 µm
|
7.5–13 µm
|
7.5–13 µm
|
7.5–13 µm
|
Image presentation |
| Display |
3.0 in. 320 × 240 color
LCD |
3.0 in. 320 × 240 color
LCD |
3.0 in. 320 × 240 color
LCD |
3.0 in. 320 × 240 color
LCD |
3.0 in. 320 × 240 color
LCD |
| Image adjustment |
Automatic adjust/lock
image |
Automatic adjust/lock
image |
Automatic adjust/lock
image |
Automatic/Manual
|
Automatic/Manual
|
Image presentation modes |
| Image modes |
Thermal , Thermal, Picture-in-Picture, Thermal
blending, Digital camera. |
Thermal , Thermal, Picture-in-Picture, Thermal
blending, Digital camera. |
Thermal , Thermal, Picture-in-Picture, Thermal
blending, Digital camera. |
Thermal , Thermal, Picture-in-Picture, Thermal
blending, Digital camera. |
Thermal , Thermal, Picture-in-Picture, Thermal
blending, Digital camera. |
| Multi Spectral Dynamic Imaging () |
IR image with enhanced
detail presentation |
IR image with enhanced
detail presentation |
IR image with enhanced
detail presentation |
IR image with enhanced
detail presentation |
IR image with enhanced
detail presentation |
| Picture-in-Picture |
IR area on visual image
|
IR area on visual image
|
IR area on visual image
|
IR area on visual image
|
IR area on visual image
|
Measurement |
| Object temperature range |
–20°C to +250°C (–4°F to +482°F)
|
–20°C to +250°C (–4°F to +482°F)
|
–20°C to +250°C (–4°F to +482°F)
10°C to 400°C (50°F to +752°F) |
–20°C to +250°C (–4°F to +482°F)
10°C to 550°C (50°F to +1022°F) |
–20°C to +250°C (–4°F to +482°F)
10°C to 550°C (50°F to +1022°F) |
| Accuracy |
±2°C (±3.6°F) or ±2% of reading, for
ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature
above +0°C (+32°F) |
±2°C (±3.6°F) or ±2% of reading, for
ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature
above +0°C (+32°F) |
±2°C (±3.6°F) or ±2% of reading, for
ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature
above +0°C (+32°F) |
±2°C (±3.6°F) or ±2% of reading, for
ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature
above +0°C (+32°F) |
±2°C (±3.6°F) or ±2% of reading, for
ambient temperature 10°C to 35°C (+50°F to 95°F) and object temperature
above +0°C (+32°F) |
Measurement analysis |
| Spotmeter |
Center spot
|
Center spot
|
Center spot
|
Center spot
|
Center spot
|
| Area |
Box with max./min.
|
Box with max./min.
|
Box with max./min.
|
Box with max./min.
|
Box with max./min.
|
| Isotherm |
Above alarm, Below
alarm |
Above alarm, Below
alarm |
Above alarm, Below
alarm |
Above alarm, Below
alarm |
Above alarm, Below
alarm |
| Emissivity correction |
Variable from 0.1 to
1.0 |
Variable from 0.1 to
1.0 |
Variable from 0.1 to
1.0 |
Variable from 0.1 to
1.0 |
Variable from 0.1 to
1.0 |
| Emissivity table |
Emissivity table of
predefined materials |
Emissivity table of
predefined materials |
Emissivity table of
predefined materials |
Emissivity table of
predefined materials |
Emissivity table of
predefined materials |
| Reflected apparent temperature
correction |
Automatic, based on
input of reflected temperature |
Automatic, based on
input of reflected temperature |
Automatic, based on
input of reflected temperature |
Automatic, based on
input of reflected temperature |
Automatic, based on
input of reflected temperature |
Set-up |
| Color palettes |
Black and white, iron
and rainbow |
Black and white, iron
and rainbow |
Black and white, iron
and rainbow |
Black and white, iron
and rainbow |
Black and white, iron
and rainbow |
| Set-up commands |
Local adaptation of
units, language, date and time formats |
Local adaptation of
units, language, date and time formats |
Local adaptation of
units, language, date and time formats |
Local adaptation of
units, language, date and time formats |
Local adaptation of
units, language, date and time formats |
Storage of images |
| File formats |
Standard JPEG, 14-bit
measurement data included |
Standard JPEG, 14-bit
measurement data included |
Standard JPEG, 14-bit
measurement data included |
Standard JPEG, 14-bit
measurement data included |
Standard JPEG, 14-bit
measurement data included |
Digital camera |
| Digital camera, resolution |
640 × 480
|
640 × 480
|
640 × 480
|
640 × 480
|
640 × 480
|
| Digital camera, FOV |
55° × 43°
|
55° × 43°
|
55° × 43°
|
55° × 43°
|
55° × 43°
|
Data communication interfaces |
| Interfaces |
USB Micro: Data
transfer to and from PC and Mac device |
USB Micro: Data
transfer to and from PC and Mac device |
USB Micro: Data
transfer to and from PC and Mac device |
USB Micro: Data
transfer to and from PC and Mac device |
USB Micro: Data
transfer to and from PC and Mac device |
| Wi-Fi |
Peer-to-peer (ad hoc)
or infrastructure (network) |
Peer-to-peer (ad hoc) or infrastructure
(network) |
Peer-to-peer (ad hoc)
or infrastructure (network) |
Peer-to-peer (ad hoc)
or infrastructure (network) |
Peer-to-peer (ad hoc)
or infrastructure (network) |
Radio |
| Wi-Fi |
- Standard: 802.11 b/g/n
- Frequency range:
- 2400–2480 MHz
- 5150–5260 MHz
- Max. output power: 15 dBm
|
- Standard: 802.11 b/g/n
- Frequency range:
- 2400–2480 MHz
- 5150–5260 MHz
- Max. output power: 15 dBm
|
- Standard: 802.11 b/g/n
- Frequency range:
- 2400–2480 MHz
- 5150–5260 MHz
- Max. output power: 15 dBm
|
- Standard: 802.11 b/g/n
- Frequency range:
- 2400–2480 MHz
- 5150–5260 MHz
- Max. output power: 15 dBm
|
- Standard: 802.11 b/g/n
- Frequency range:
- 2400–2480 MHz
- 5150–5260 MHz
- Max. output power: 15 dBm
|
Power system |
| Battery type |
Rechargeable Li ion
battery |
Rechargeable Li ion
battery |
Rechargeable Li ion
battery |
Rechargeable Li ion
battery |
Rechargeable Li ion
battery |
| Battery voltage |
3.6 V
|
3.6 V
|
3.6 V
|
3.6 V
|
3.6 V
|
| Battery operating time |
Approx. 4 hours at
+25°C (+77°F) ambient temperature and typical use |
Approx. 4 hours at
+25°C (+77°F) ambient temperature and typical use |
Approx. 4 hours at
+25°C (+77°F) ambient temperature and typical use |
Approx. 4 hours at
+25°C (+77°F) ambient temperature and typical use |
Approx. 4 hours at
+25°C (+77°F) ambient temperature and typical use |
| Charging system |
Battery is charged
inside the camera or in specific charger. |
Battery is charged
inside the camera or in specific charger. |
Battery is charged
inside the camera or in specific charger. |
Battery is charged
inside the camera or in specific charger. |
Battery is charged
inside the camera or in specific charger. |
| Charging time |
2.5 hours to 90%
capacity in camera. 2 hours in charger. |
2.5 hours to 90%
capacity in camera. 2 hours in charger. |
2.5 hours to 90%
capacity in camera. 2 hours in charger. |
2.5 hours to 90%
capacity in camera. 2 hours in charger. |
2.5 hours to 90%
capacity in camera. 2 hours in charger. |
| Power management |
Automatic shut-down
|
Automatic shut-down
|
Automatic shut-down
|
Automatic shut-down
|
Automatic shut-down
|
| AC operation |
AC adapter, 90–260 VAC
input, 5 VDC output to camera |
AC adapter, 90–260 VAC
input, 5 VDC output to camera |
AC adapter, 90–260 VAC
input, 5 VDC output to camera |
AC adapter, 90–260 VAC
input, 5 VDC output to camera |
AC adapter, 90–260 VAC
input, 5 VDC output to camera |
Environmental data |
| Operating temperature range |
–15°C to +50°C (+5°F to +122°F)
|
–15°C to +50°C (+5°F to +122°F)
|
–15°C to +50°C (+5°F to +122°F)
|
–15°C to +50°C (+5°F to +122°F)
|
–15°C to +50°C (+5°F to +122°F)
|
| Storage temperature range |
–40°C to +70°C (–40°F to +158°F)
|
–40°C to +70°C (–40°F to +158°F)
|
–40°C to +70°C (–40°F to +158°F)
|
–40°C to +70°C (–40°F to +158°F)
|
–40°C to +70°C (–40°F to +158°F)
|
| Humidity (operating and storage) |
IEC 60068-2-30/24 h 95%
relative humidity |
IEC 60068-2-30/24 h 95%
relative humidity |
IEC 60068-2-30/24 h 95%
relative humidity |
IEC 60068-2-30/24 h 95%
relative humidity |
IEC 60068-2-30/24 h 95%
relative humidity |
| EMC |
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- RCM
|
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- RCM
|
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- RCM
|
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- RCM
|
- EN 61000-6-2 (Immunity)
- EN 61000-6-3 (Emission)
- FCC 47 CFR Part 15 Class
B (Emission)
- RCM
|
| Radio spectrum |
- ETSI EN 300 328
- ETSI EN 301 893
- FCC 47 CFR Part 15 C, E
- RSS-247 Issue 2
|
- ETSI EN 300 328
- ETSI EN 301 893
- FCC 47 CFR Part 15 C, E
- RSS-247 Issue 2
|
- ETSI EN 300 328
- ETSI EN 301 893
- FCC 47 CFR Part 15 C, E
- RSS-247 Issue 2
|
- ETSI EN 300 328
- ETSI EN 301 893
- FCC 47 CFR Part 15 C, E
- RSS-247 Issue 2
|
- ETSI EN 300 328
- ETSI EN 301 893
- FCC 47 CFR Part 15 C, E
- RSS-247 Issue 2
|
| Hazardous substances |
- WEEE 2012/19/EU
- RoHs 2011/65/EU
|
- WEEE 2012/19/EU
- RoHs 2011/65/EU
|
- WEEE 2012/19/EU
- RoHs 2011/65/EU
|
- WEEE 2012/19/EU
- RoHs 2011/65/EU
|
- WEEE 2012/19/EU
- RoHs 2011/65/EU
|
| Encapsulation |
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
| Shock |
25 g (IEC 60068-2-27)
|
25 g (IEC 60068-2-27)
|
25 g (IEC 60068-2-27)
|
25 g (IEC 60068-2-27)
|
25 g (IEC 60068-2-27)
|
| Vibration |
2 g (IEC 60068-2-6)
|
2 g (IEC 60068-2-6)
|
2 g (IEC 60068-2-6)
|
2 g (IEC 60068-2-6)
|
2 g (IEC 60068-2-6)
|
| Drop |
2 m (6.6 ft.)
|
2 m (6.6 ft.)
|
2 m (6.6 ft.)
|
2 m (6.6 ft.)
|
2 m (6.6 ft.)
|
| Safety |
Camera: IEC/EN60950-1
Power supply: UL, CSA, CE, PSE, CCC, and SAA
|
Camera: IEC/EN60950-1
Power supply: UL, CSA, CE, PSE, CCC, and SAA
|
Camera: IEC/EN60950-1
Power supply: UL, CSA, CE, PSE, CCC, and SAA
|
Camera: IEC/EN60950-1
Power supply: UL, CSA, CE, PSE, CCC, and SAA
|
Camera: IEC/EN60950-1
Power supply: UL, CSA, CE, PSE, CCC, and SAA
|
Physical data |
| Camera weight, incl. battery |
0.575 kg (1.27 lb.)
|
0.575 kg (1.27 lb.)
|
0.575 kg (1.27 lb.)
|
0.575 kg (1.27 lb.)
|
0.575 kg (1.27 lb.)
|
| Camera size (L × W × H) |
244 × 95 × 140 mm (9.6
× 3.7 × 5.5 in.) |
244 × 95 × 140 mm (9.6
× 3.7 × 5.5 in.) |
244 × 95 × 140 mm (9.6
× 3.7 × 5.5 in.) |
244 × 95 × 140 mm (9.6
× 3.7 × 5.5 in.) |
244 × 95 × 140 mm (9.6
× 3.7 × 5.5 in.) |
| Color |
Black and gray
|
Black and gray
|
Black and gray
|
Black and gray
|
Black and gray
|
Shipping information |
| Packaging, type |
Cardboard box
|
Cardboard box
|
Cardboard box
|
Cardboard box
|
Cardboard box
|
| List of contents |
- Infrared camera
- Hard transport case
- Battery (inside camera)
- USB cable
- Power supply/charger with
EU, UK, US and Australian plugs
- Printed documentation
|
- Infrared camera
- Hard transport case
- Battery (inside camera)
- USB cable
- Power supply/charger with
EU, UK, US and Australian plugs
- Printed documentation
|
- Infrared camera
- Hard transport case
- Battery (inside camera)
- USB cable
- Power supply/charger with
EU, UK, US and Australian plugs
- Printed documentation
|
- Infrared camera
- Hard transport case
- Battery (inside camera)
- USB cable
- Power supply/charger with
EU, UK, US and Australian plugs
- Printed documentation
|
- Infrared camera
- Hard transport case
- Battery (2x)
- USB cable
- Power supply/charger with
EU, UK, US and Australian plugs
- Battery charger
- Printed documentation
|
| Packaging, weight |
2.9 kg (6.4 lb.)
|
2.9 kg (6.4 lb.)
|
2.9 kg (6.4 lb.)
|
2.9 kg (6.4 lb.)
|
3.13 kg (6.9 lb.)
|
| Packaging, size |
385 × 165 × 315 mm
(15.2 × 6.5 × 12.4 in.) |
385 × 165 × 315 mm
(15.2 × 6.5 × 12.4 in.) |
385 × 165 × 315 mm
(15.2 × 6.5 × 12.4 in.) |
385 × 165 × 315 mm
(15.2 × 6.5 × 12.4 in.) |
385 × 165 × 315 mm
(15.2 × 6.5 × 12.4 in.) |
| EAN-13 |
4743254002869
|
4743254002876
|
4743254004009
|
4743254004016
|
4743254004023
|
| UPC-12 |
845188014117
|
845188014124
|
845188018788
|
845188018795
|
845188018801
|
| Country of origin |
Estonia
|
Estonia
|
Estonia
|
Estonia
|
Estonia
|
