Metadata |
| Part No. |
84502-0201 |
78502-0101 |
78502-0201 |
78502-0301 |
| Product name |

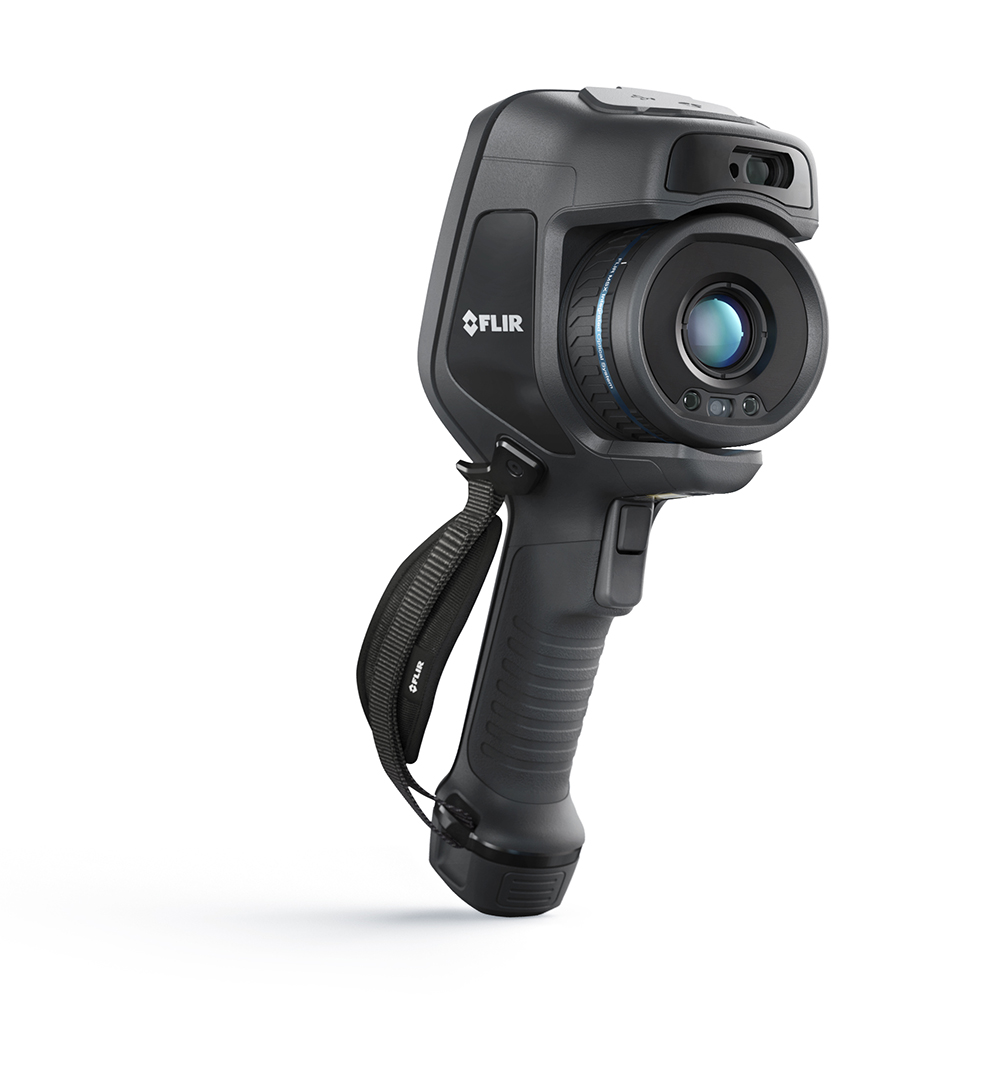

FLIR E53 24° |
FLIR E75 24° |
FLIR E85 24° |
FLIR E95 24° |
| Revision |
48892 |
48894 |
48902 |
48916 |
| Last modified |
2018-04-05 13:45 |
2018-04-05 13:48 |
2018-04-05 14:53 |
2018-04-05 16:22 |
Imaging and optical data |
| Infrared resolution |
240 × 180 pixels
|
320 × 240 pixels
|
384 × 288 pixels
|
464 × 348 pixels
|
| NETD |
<40 mK @ +30°C |
<40 mK @ +30°C |
<40 mK @ +30°C |
<40 mK @ +30°C |
| (super-resolution) |
- |
In |
In |
In
|
| Field of view |
24° × 18°
|
24° × 18°
|
24° × 18°
|
24° × 18°
|
| Minimum focus distance |
0.15 m |
0.15 m |
0.15 m |
0.15 m |
| Minimum focus distance with MSX |
0.5 m |
0.5 m |
0.5 m |
0.5 m |
| Focal length |
17 mm |
17 mm |
17 mm |
17 mm |
| Spatial resolution (IFOV) |
1.75 mrad/pixel
|
1.31 mrad/pixel
|
1.09 mrad/pixel
|
0.90 mrad/pixel
|
| Lens identification |
Automatic
|
Automatic
|
Automatic
|
Automatic
|
| f number |
1.3 |
1.3 |
1.3 |
1.3
|
| Available extra lenses |
- |
- 42° (AutoCal)
- 14° (AutoCal)
- 6° (service calibration
required)
|
- 42° (AutoCal)
- 14° (AutoCal)
- 6° (service calibration
required)
|
- 14° (AutoCal)
- 42° (AutoCal)
- 6° (service calibration
required)
|
| Image frequency |
30 Hz
|
30 Hz
|
30 Hz
|
30 Hz
|
| Focus |
Manual
|
- Continuous LDM
- One-shot LDM
- One-shot contrast
- Manual
|
- Continuous LDM
- One-shot LDM
- One-shot contrast
- Manual
|
- Continuous LDM
- One-shot LDM
- One-shot contrast
- Manual
|
| Field of view match |
Yes |
Yes |
Yes |
Yes
|
| Digital zoom |
1–4× continuous
|
1–4× continuous
|
1–4× continuous
|
1–4× continuous
|
Detector data |
| Focal plane array/spectral range |
Uncooled
microbolometer/7.5–14 µm |
Uncooled
microbolometer/7.5–14 µm |
Uncooled
microbolometer/7.5–14 µm |
Uncooled
microbolometer/7.5–14 µm |
| Detector pitch |
17 µm
|
17 µm
|
17 µm
|
17 µm
|
Image presentation |
| Resolution |
640 × 480 pixels (VGA)
|
640 × 480 pixels (VGA)
|
640 × 480 pixels (VGA)
|
640 × 480 pixels (VGA)
|
| Surface brightness (cd/m2) |
400 |
400 |
400 |
400
|
| Screen size |
4 in.
|
4 in.
|
4 in.
|
4 in.
|
| Viewing angle |
80° |
80° |
80° |
80°
|
| Color depth (bits) |
24 |
24 |
24 |
24
|
| Aspect ratio |
4:3 |
4:3 |
4:3 |
4:3
|
| Auto-rotation |
Yes |
Yes |
Yes |
Yes
|
| Touchscreen |
Optically bonded PCAP
|
Optically bonded PCAP
|
Optically bonded PCAP
|
Optically bonded PCAP
|
| Display technology |
IPS |
IPS |
IPS |
IPS
|
| Cover glass material |
Dragontrail®
|
Dragontrail® |
Dragontrail® |
Dragontrail® |
| Programmable buttons |
1 |
1 |
1 |
1 |
| Viewfinder |
No |
No |
No |
No
|
| Image adjustment |
- Automatic
- Automatic maximum
- Automatic minimum
- Manual
|
- Automatic
- Automatic maximum
- Automatic minimum
- Manual
|
- Automatic
- Automatic maximum
- Automatic minimum
- Manual
|
- Automatic
- Automatic maximum
- Automatic minimum
- Manual
|
Image presentation modes |
| Infrared image |
Yes |
Yes |
Yes |
Yes
|
| Visual image |
Yes |
Yes |
Yes |
Yes
|
| Thermal fusion |
No |
No |
No |
No
|
|
Yes |
Yes |
Yes |
Yes
|
| Picture in Picture |
Centered infrared area
on the visual image |
Resizable and movable
|
Resizable and movable
|
Resizable and movable
|
| Gallery |
Yes |
Yes |
Yes |
Yes
|
Measurement |
| Camera temperature range |
Object temperature
range |
Object temperature
range |
Object temperature
range |
Object temperature
range |
| Accuracy — for ambient temperature +15 to
+35°C |
|
|
|
|
| –20 to +120°C |
–20 to +100°C |
–20 to +100°C |
–20 to +100°C |
–20 to +100°C |
| ±2°C |
|
|
|
|
| +100 to +120°C |
±2% |
±2% |
±2% |
±2% |
| 0 to +650°C |
0 to +100°C |
0 to +100°C |
0 to +100°C |
0 to +100°C |
| ±2°C |
|
|
|
|
| +100 to + 650°C |
±2% |
±2% |
±2% |
±2% |
| Optional +300 to +1000°C |
- |
+300 to +1000°C |
- |
- |
| +300 to +1200°C |
- |
- |
+300 to +1200°C |
- |
| +300 to +1500°C |
- |
- |
- |
+300 to +1500°C |
| ±2% |
- |
|
|
|
Measurement analysis |
| Spotmeter |
3 in live mode
|
3 in live mode
|
3 in live mode
|
3 in live mode
|
| Area |
1 in live mode
|
1 in live mode
|
3 in live mode
|
3 in live mode
|
| Automatic hot/cold detection |
Auto-maximum/minimum
markers within area |
Auto-maximum/minimum
markers within area |
Auto-maximum/minimum
markers within area |
Auto-maximum/minimum
markers within area |
| Measurement presets |
- No measurements
- Center spot
- Hot spot
- Cold spot
- 3 spots
- Hot spot–Spot
|
- No measurements
- Center spot
- Hot spot
- Cold spot
- User preset 1
- User preset 2
|
- No measurements
- Center spot
- Hot spot
- Cold spot
- User preset 1
- User preset 2
|
- No measurements
- Center spot
- Hot spot
- Cold spot
- User preset 1
- User preset 2
|
| Difference temperature |
Yes: as preset (Hot
spot–Spot) |
Yes |
Yes |
Yes
|
| Reference temperature |
Yes: in preview mode
|
Yes |
Yes |
Yes
|
| Emissivity correction |
Yes: variable from 0.01
to 1.0 or selected from materials list |
Yes: variable from 0.01
to 1.0 or selected from materials list |
Yes: variable from 0.01
to 1.0 or selected from materials list |
Yes: variable from 0.01
to 1.0 or selected from materials list |
| Measurement corrections |
Yes |
Yes |
Yes |
Yes
|
| External optics/windows correction |
Yes |
Yes |
Yes |
Yes
|
| Screening |
0.5°C accuracy @ 37°C with
reference |
0.5°C accuracy @ 37°C with
reference |
0.5°C accuracy @ 37°C with
reference |
0.5°C accuracy @ 37°C with
reference |
Alarm |
| Color alarm (isotherm) |
- Above
- Below
- Interval
- Condensation
(moisture/humidity/dewpoint)
- Insulation
|
- Above
- Below
- Interval
- Condensation
(moisture/humidity/dewpoint)
- Insulation
|
- Above
- Below
- Interval
- Condensation
(moisture/humidity/dewpoint)
- Insulation
|
- Above
- Below
- Interval
- Condensation
(moisture/humidity/dewpoint)
- Insulation
|
| Measurement function alarm |
Audible/visual alarms
(above/below) |
Audible/visual alarms
(above/below) on any selected measurement function |
Audible/visual alarms
(above/below) on any selected measurement function |
Audible/visual alarms
(above/below) on any selected measurement function |
Set-up |
| Color palettes |
- Iron
- Gray
- Rainbow
- Arctic
- Lava
- Rainbow HC
|
- Iron
- Gray
- Rainbow
- Arctic
- Lava
- Rainbow HC
|
- Iron
- Gray
- Rainbow
- Arctic
- Lava
- Rainbow HC
|
- Iron
- Gray
- Rainbow
- Arctic
- Lava
- Rainbow HC
|
| Setup commands |
Local adaptation of
units, language, date and time formats |
Local adaptation of
units, language, date and time formats |
Local adaptation of
units, language, date and time formats |
Local adaptation of
units, language, date and time formats |
| Languages |
21 |
21 |
21 |
21
|
Service functions |
| Camera software update |
Use PC software
|
Use PC software
|
Use PC software
|
Use PC software
|
Storage of images |
| Storage media |
Removable memory; SD
card (8 GB) |
Removable memory; SD
card (8 GB) |
Removable memory; SD
card (8 GB) |
Removable memory; SD
card (8 GB) |
| Remote control operation |
- Using (using USB cable)
- (over Wi-Fi)
|
- Using (using USB cable)
- (over Wi-Fi)
|
- Using (using USB cable)
- (over Wi-Fi)
|
- Using (using USB cable)
- (over Wi-Fi)
|
| Time lapse (periodic image storage) |
- |
No |
No |
10 seconds to 24 hours
(infrared) |
| Image file format |
Standard JPEG,
measurement data included. Infrared-only mode |
Standard JPEG,
measurement data included. Infrared-only mode |
Standard JPEG,
measurement data included. Infrared-only mode |
Standard JPEG,
measurement data included. Infrared-only mode |
Image annotations |
| Voice |
60 seconds built-in
microphone and speaker (and via Bluetooth) on still images and video
|
60 seconds built-in
microphone and speaker (and via Bluetooth) on still images and video
|
60 seconds built-in
microphone and speaker (and via Bluetooth) on still images and video
|
60 seconds built-in
microphone and speaker (and via Bluetooth) on still images and video
|
| Text |
Text from predefined
list or soft keyboard on touchscreen |
Text from predefined
list or soft keyboard on touchscreen |
Text from predefined
list or soft keyboard on touchscreen |
Text from predefined
list or soft keyboard on touchscreen |
| Visual image annotation |
Yes |
Yes |
Yes |
Yes
|
| Image sketch |
Yes: on infrared images
only |
Yes: on infrared images
only |
Yes: on infrared images
only |
Yes: on infrared images
only |
| Sketch |
From touchscreen
|
From touchscreen
|
From touchscreen
|
From touchscreen
|
|
Wireless connection
(Bluetooth) to: meters with |
Wireless connection
(Bluetooth) to: meters with |
Wireless connection
(Bluetooth) to: meters with |
Wireless connection
(Bluetooth) to: meters with
|
| Compass |
Yes |
Yes |
Yes |
Yes
|
| Laser distance meter information |
No |
Yes |
Yes |
Yes
|
| Area measurement information |
No |
No |
Yes |
Yes
|
| GPS |
Yes: location data
automatically added to every still image and the first frame in video from
built-in GPS |
Yes: location data
automatically added to every still image and the first frame in video from
built-in GPS |
Yes: location data
automatically added to every still image and the first frame in video from
built-in GPS |
Yes: location data
automatically added to every still image and the first frame in video from
built-in GPS |
Video recording in camera |
| Radiometric infrared-video recording |
RTRR (.csq)
|
RTRR (.csq)
|
RTRR (.csq)
|
RTRR (.csq)
|
| Non-radiometric infrared-video
recording |
H.264 to memory card
|
H.264 to memory card
|
H.264 to memory card
|
H.264 to memory card
|
| Visual video recording |
H.264 to memory card
|
H.264 to memory card
|
H.264 to memory card
|
H.264 to memory card
|
Video streaming |
| Radiometric infrared–video streaming
(compressed) |
Over UVC
|
Over UVC
|
Over UVC
|
Over UVC
|
| Non-radiometric video streaming
(compressed: IR, ,
visual, Picture in Picture) |
- H.264 (AVC) over RTSP
(Wi-Fi)
- MPEG4 over RTSP (Wi-Fi)
- MJPEG over UVC and RTSP
(Wi-Fi)
|
- H.264 (AVC) over RTSP
(Wi-Fi)
- MPEG4 over RTSP (Wi-Fi)
- MJPEG over UVC and RTSP
(Wi-Fi)
|
- H.264 (AVC) over RTSP
(Wi-Fi)
- MPEG4 over RTSP (Wi-Fi)
- MJPEG over UVC and RTSP
(Wi-Fi)
|
- H.264 (AVC) over RTSP
(Wi-Fi)
- MPEG4 over RTSP (Wi-Fi)
- MJPEG over UVC and RTSP
(Wi-Fi)
|
| Visual video streaming |
Yes |
Yes |
Yes |
Yes
|
Digital camera |
| Resolution |
5 MP with LED light
|
5 MP with LED light
|
5 MP with LED light
|
5 MP with LED light
|
| Focus |
Fixed
|
Fixed
|
Fixed
|
Fixed
|
| Field of view |
53° × 41°
|
53° × 41°
|
53° × 41°
|
53° × 41°
|
| Video lamp |
Built-in LED light
|
Built-in LED light
|
Built-in LED light
|
Built-in LED light
|
Laser pointer |
| Laser pointer |
Yes |
- |
- |
- |
| Laser alignment |
- |
Position is
automatically displayed on the infrared image |
Position is
automatically displayed on the infrared image |
Position is
automatically displayed on the infrared image |
| Laser distance meter |
- |
Activated by a
dedicated button |
Activated by a
dedicated button |
Activated by a
dedicated button |
| Laser |
- |
Class 2, 0.05–40
m ±1% of measured distance |
Class 2, 0.05–40
m ±1% of measured distance |
Class 2, 0.05–40
m ±1% of measured distance |
Data communication interfaces |
| Interfaces |
USB 2.0, Bluetooth,
Wi-Fi, DisplayPort |
USB 2.0, Bluetooth,
Wi-Fi, DisplayPort |
USB 2.0, Bluetooth,
Wi-Fi, DisplayPort |
USB 2.0, Bluetooth,
Wi-Fi, DisplayPort |
| /Bluetooth |
Communication with
headset and external sensors |
Communication with
headset and external sensors |
Communication with
headset and external sensors |
Communication with
headset and external sensors |
| Wi-Fi |
Peer to peer (ad hoc) or infrastructure
(network) |
Peer to peer (ad hoc) or infrastructure
(network) |
Peer to peer (ad hoc) or infrastructure
(network) |
Peer to peer (ad hoc) or infrastructure
(network) |
| Audio |
Microphone and speaker
for voice annotation of images |
Microphone and speaker
for voice annotation of images |
Microphone and speaker
for voice annotation of images |
Microphone and speaker
for voice annotation of images |
| USB |
USB Type-C: data
transfer/video/power |
USB Type-C: data
transfer/video/power |
USB Type-C: data
transfer/video/power |
USB Type-C: data
transfer/video/power |
| USB standard |
USB 2.0 High Speed
|
USB 2.0 High Speed
|
USB 2.0 High Speed
|
USB 2.0 High Speed
|
| Video out |
DisplayPort
|
DisplayPort
|
DisplayPort
|
DisplayPort
|
| Video connector type |
DisplayPort over USB
Type-C |
DisplayPort over USB
Type-C |
DisplayPort over USB
Type-C |
DisplayPort over USB
Type-C |
Radio |
| Operating frequency |
Bluetooth + EDR/LE:
2402–2480 MHz WLAN 2.4 GHz: 2412–2462 MHz
WLAN 5 GHz: 5150–5350 MHz (DFS: only slave mode) Note
that frequency band 5150–5350 MHz is for indoor use only, see national
regulations. |
Bluetooth + EDR/LE:
2402–2480 MHz WLAN 2.4 GHz: 2412–2462 MHz
WLAN 5 GHz: 5150–5350 MHz (DFS: only slave mode) Note
that frequency band 5150–5350 MHz is for indoor use only, see national
regulations. |
Bluetooth + EDR/LE:
2402–2480 MHz WLAN 2.4 GHz: 2412–2462 MHz
WLAN 5 GHz: 5150–5350 MHz (DFS: only slave mode) Note
that frequency band 5150–5350 MHz is for indoor use only, see national
regulations. |
Bluetooth + EDR/LE:
2402–2480 MHz WLAN 2.4 GHz: 2412–2462 MHz
WLAN 5 GHz: 5150–5350 MHz (DFS: only slave mode) Note
that frequency band 5150–5350 MHz is for indoor use only, see national
regulations. |
| RF output (EIRP) |
Bluetooth + EDR/LE:
< 10 dBm WLAN: < 17 dBm |
Bluetooth + EDR/LE:
< 10 dBm WLAN: < 17 dBm |
Bluetooth + EDR/LE:
< 10 dBm WLAN: < 17 dBm |
Bluetooth + EDR/LE:
< 10 dBm WLAN: < 17 dBm |
| Antenna |
Integrated PIFA antenna
(gain: maximum 1.4 dBi) |
Integrated PIFA antenna
(gain: maximum 1.4 dBi) |
Integrated PIFA antenna
(gain: maximum 1.4 dBi) |
Integrated PIFA antenna
(gain: maximum 1.4 dBi) |
Power system |
| Battery type |
Rechargeable Li-ion
battery |
Rechargeable Li-ion
battery |
Rechargeable Li-ion
battery |
Rechargeable Li-ion
battery |
| Battery voltage |
3.6 V
|
3.6 V
|
3.6 V
|
3.6 V
|
| Battery operating time |
> 2.5 hours at
25°C and typical use |
> 2.5 hours at
25°C and typical use |
> 2.5 hours at
25°C and typical use |
> 2.5 hours at
25°C and typical use |
| Charging system |
In camera (AC adapter
or 12 V from a vehicle) or two-bay charger |
In camera (AC adapter
or 12 V from a vehicle) or two-bay charger |
In camera (AC adapter
or 12 V from a vehicle) or two-bay charger |
In camera (AC adapter
or 12 V from a vehicle) or two-bay charger |
| Charging time (using two-bay charger) |
2.5 hours to 90%
capacity with charging status indicated by LEDs |
2.5 hours to 90%
capacity with charging status indicated by LEDs |
2.5 hours to 90%
capacity with charging status indicated by LEDs |
2.5 hours to 90%
capacity with charging status indicated by LEDs |
| Charging temperature |
0°C to +45°C, except for the Korean market: +10°C to
+45°C
|
0°C to +45°C, except for the Korean market: +10°C to +45°C |
0°C to +45°C, except for the Korean market: +10°C to +45°C |
0°C to +45°C, except for the Korean market: +10°C to +45°C |
| External power operation |
AC adapter 90–260 V AC,
50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional)
|
AC adapter 90–260 V AC,
50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional)
|
AC adapter 90–260 V AC,
50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional)
|
AC adapter 90–260 V AC,
50/60 Hz, or 12 V from a vehicle (cable with standard plug—optional)
|
| Power management |
Automatic shut-down and
sleep mode |
Automatic shut-down and
sleep mode |
Automatic shut-down and
sleep mode |
Automatic shut-down and
sleep mode |
Environmental data |
| Operating temperature range |
–15 to +50°C |
–15 to +50°C |
–15 to +50°C |
–15 to +50°C |
| Storage temperature range |
–40 to +70°C |
–40 to +70°C |
–40 to +70°C |
–40 to +70°C |
| Humidity (operating and storage) |
IEC 60068-2-30/24
hours/95% relative humidity 25–40°C/two cycles
|
IEC 60068-2-30/24
hours/95% relative humidity 25–40°C/two cycles
|
IEC 60068-2-30/24
hours/95% relative humidity 25–40°C/two cycles
|
IEC 60068-2-30/24
hours/95% relative humidity 25–40°C (77–104°F)/two cycles
|
| EMC |
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (immunity)
- EN 61000-6-3 (emission)
- FCC 47 CFR Part 15 Class
B (emission)
|
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (immunity)
- EN 61000-6-3 (emission)
- FCC 47 CFR Part 15 Class
B (emission)
|
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (immunity)
- EN 61000-6-3 (emission)
- FCC 47 CFR Part 15 Class
B (emission)
|
- ETSI EN 301 489-1 (radio)
- ETSI EN 301 489-17
- EN 61000-6-2 (immunity)
- EN 61000-6-3 (emission)
- FCC 47 CFR Part 15 Class
B (emission)
|
| Radio spectrum |
- ETSI EN 300 328
- FCC Part 15.249
- RSS-247 Issue 2
|
- ETSI EN 300 328
- FCC Part 15.249
- RSS-247 Issue 2
|
- ETSI EN 300 328
- FCC Part 15.249
- RSS-247 Issue 2
|
- ETSI EN 300 328
- FCC Part 15.249
- RSS-247 Issue 2
|
| Encapsulation |
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
IP 54 (IEC 60529)
|
| Shock |
25g (IEC 60068-2-27) |
25g (IEC 60068-2-27) |
25g (IEC 60068-2-27) |
25g (IEC 60068-2-27) |
| Vibration |
2g (IEC 60068-2-6) |
2g (IEC 60068-2-6) |
2g (IEC 60068-2-6) |
2g (IEC 60068-2-6) |
| Drop |
Designed for 2 m |
Designed for 2 m |
Designed for 2 m |
Designed for 2 m |
| Safety |
EN/UL/CSA/PSE 60950-1
|
EN/UL/CSA/PSE 60950-1
|
EN/UL/CSA/PSE 60950-1
|
EN/UL/CSA/PSE 60950-1
|
Physical data |
| Weight (including battery) |
1 kg |
1 kg |
1 kg |
1 kg |
| Size (L × W × H) |
278.4 × 116.1 × 113.1
mm |
278.4 × 116.1 × 113.1
mm |
278.4 × 116.1 × 113.1
mm |
278.4 × 116.1 × 113.1
mm |
| Battery weight |
140 g |
140 g |
140 g |
140 g |
| Battery size (L × W × H) |
150 × 46 × 55 mm |
150 × 46 × 55 mm |
150 × 46 × 55 mm |
150 × 46 × 55 mm |
| Tripod mounting |
UNC ¼″-20
|
UNC ¼″-20
|
UNC ¼″-20
|
UNC ¼″-20
|
| Housing material |
PCABS with TPE,
magnesium |
PCABS with TPE,
magnesium |
PCABS with TPE,
magnesium |
PCABS with TPE,
magnesium |
| Color |
Black
|
Black
|
Black
|
Black
|
Warranty and service |
| Warranty |
http://www.flir.com/warranty/
|
http://www.flir.com/warranty/
|
http://www.flir.com/warranty/
|
http://www.flir.com/warranty/
|
Shipping information |
| Packaging, type |
Cardboard box
|
Cardboard box
|
Cardboard box
|
Cardboard box
|
| Packaging, contents |
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Accessory Box I:
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to
HDMI adapter, standard specification UH311
- USB Type-C to USB
Type-C cable (USB 2.0 standard), 1.0 m
- Power supply for
battery charger
- Power supply, 15
W/3 A
- Printed
documentation
- Accessory box II:
- Hand strap
- Lanyard strap,
camera
- Wrist strap
- Lens cap strap
- Front protection
- Carabiner hook
- Accessory box
III:
- Hand
strap bracket, right
- Hand
strap bracket, left
- Torx T10
wrench
- Front
protection fastener
- Screws
|
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear
(only for extra lenses)
- Accessory Box I:
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to
HDMI adapter, standard specification UH311
- USB Type-C to USB
Type-C cable (USB 2.0 standard), 1.0 m
- Power supply for
battery charger
- Power supply, 15
W/3 A
- Printed
documentation
- Accessory box II:
- Hand strap
- Lanyard strap,
camera
- Wrist strap
- Lens cap strap
- Front protection
- Carabiner hook
- Accessory box
III:
- Hand
strap bracket, right
- Hand
strap bracket, left
- Torx T10
wrench
- Front
protection fastener
- Screws
|
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear
(only for extra lenses)
- Accessory Box I:
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to
HDMI adapter, standard specification UH311
- USB Type-C to USB
Type-C cable (USB 2.0 standard), 1.0 m
- Power supply for
battery charger
- Power supply, 15
W/3 A
- Printed
documentation
- Accessory box II:
- Hand strap
- Lanyard strap,
camera
- Wrist strap
- Lens cap strap
- Front protection
- Carabiner hook
- Accessory box
III:
- Hand
strap bracket, right
- Hand
strap bracket, left
- Torx T10
wrench
- Front
protection fastener
- Screws
|
- Battery (2 ea)
- Battery charger
- Hard transport case
- Infrared camera with lens
- Lens cap, front
- Lens cap, front and rear
(only for extra lenses)
- Accessory Box I:
- SD card (8 GB)
- USB 2.0 A to USB Type-C cable, 1.0 m
- USB Type-C to
HDMI adapter, standard specification UH311
- USB Type-C to USB
Type-C cable (USB 2.0 standard), 1.0 m
- Power supply for
battery charger
- Power supply, 15
W/3 A
- Printed
documentation
- Accessory box II:
- Hand strap
- Lanyard strap,
camera
- Wrist strap
- Lens cap strap
- Front protection
- Carabiner hook
- Accessory box
III:
- Hand
strap bracket, right
- Hand
strap bracket, left
- Torx T10
wrench
- Front
protection fastener
- Screws
|
| Packaging, weight |
5.4 kg |
5.8 kg |
5.8 kg |
5.8 kg |
| Packaging, size |
500 × 190 × 370
mm |
500 × 190 × 370 mm
(19.7 × 7.5 × 14.6 in.) |
500 × 190 × 370 mm
(19.7 × 7.5 × 14.6 in.) |
500 × 190 × 370 mm
(19.7 × 7.5 × 14.6 in.) |
| EAN-13 |
4743254003781
|
4743254002654
|
4743254002678
|
4743254002692
|
| UPC-12 |
845188016630
|
845188013882
|
845188013905
|
845188013929
|
| Country of origin |
Estonia
|
Estonia
|
Estonia
|
Estonia
|
